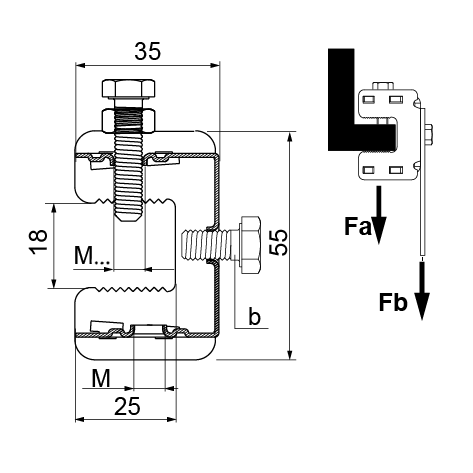

ZCM1... Beam Clamp

0.0
Information

Mounting rods, clamps, etc. to: I-beams, angle profiles, etc.

Material

FP - galvanised according to the zinc flake method PN-EN ISO 10683:2018-11

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– bolt "b" is added separately, i.e., additional bolts in an independent package are added to the bulk package of clamps with bolted-in bolts with lock nuts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Size M (mm) Fa max (kN) Fb max (kN) Weight 1 pc. (kg) Quantity (pcs.)
ZCM1/M6
Cable Management Solutions – BAKS
752302
Cable Management Solutions – BAKS
6
Cable Management Solutions – BAKS
0.50
Cable Management Solutions – BAKS
0.20
Cable Management Solutions – BAKS
0.07
Cable Management Solutions – BAKS
100 		Add
ZCM1/M8
Cable Management Solutions – BAKS
752304
Cable Management Solutions – BAKS
8
Cable Management Solutions – BAKS
0.50
Cable Management Solutions – BAKS
0.20
Cable Management Solutions – BAKS
0.07
Cable Management Solutions – BAKS
100 		Add
