CZDSP...H110 Horizontal Cross-over

1.5
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

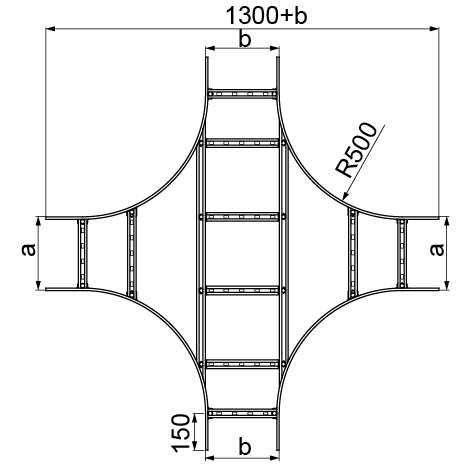

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the

designation CZDSC400/600/400/600H...)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
CZDSP200H110
Cable Management Solutions – BAKS
421321
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
9.99
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
CZDSP300H110
Cable Management Solutions – BAKS
421331
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
11.05
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
CZDSP400H110
Cable Management Solutions – BAKS
421341
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
12.10
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
CZDSP500H110
Cable Management Solutions – BAKS
421351
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
13.23
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
CZDSP600H110
Cable Management Solutions – BAKS
421361
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
14.23
Cable Management Solutions – BAKS
1
Add
