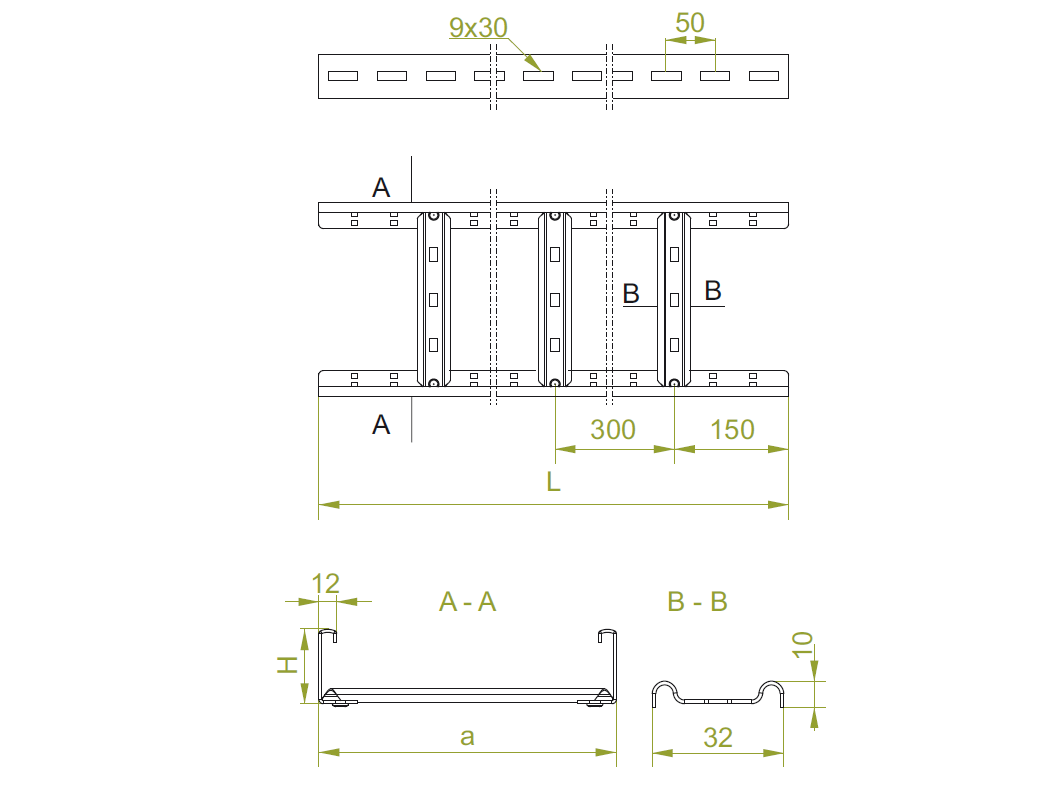

DKP Cable Ladder H45

Information

Cable routing

Material

Steel, strip-galv. acc. to the Sendzimir
PN-EN 10346:2015-09 (SG)
Available finishes:
F- steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E- stainless steel (SS), grade 1.4301 (AISI304),
sections to 3m long.
L- powder coating in a full range of colours (PC)

Additional information

NOTE
Cable ladder with rungs adapted to fixing
Cable Clamps UKZ/UKZO
available upon special order:
- cable ladders 2m long
- cable ladders 150, 250 mm wide

NOTE
For horizontal assembly of ladders with rungs directly to the wall
we recommend using ladders with double riveting of rungs
to the side. Installation of the ladder additionally
strengthened with flat bars

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Length L (mm)
Effective sectio
Weight (1m) (kg) Quantity in box (pcs. / m.) Plik 3D
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
2700 mm
DKP100H45/3N
Cable Management Solutions – BAKS
445410
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
2,700
Cable Management Solutions – BAKS
2.06 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
DKP100H45/6N
Cable Management Solutions – BAKS
445510
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
2,700
Cable Management Solutions – BAKS
2.06 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
5400 mm
DKP200H45/3N
Cable Management Solutions – BAKS
445420
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
5,400
Cable Management Solutions – BAKS
2.33 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
DKP200H45/6N
Cable Management Solutions – BAKS
445520
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
5,400
Cable Management Solutions – BAKS
2.33 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
8100 mm
DKP300H45/3N
Cable Management Solutions – BAKS
445430
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
8,100
Cable Management Solutions – BAKS
2.61 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
DKP300H45/6N
Cable Management Solutions – BAKS
445530
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
8,100
Cable Management Solutions – BAKS
2.61 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
10800 mm
DKP400H45/3N
Cable Management Solutions – BAKS
445440
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
10,800
Cable Management Solutions – BAKS
3.02 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
DKP400H45/6N
Cable Management Solutions – BAKS
445540
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
10,800
Cable Management Solutions – BAKS
3.02 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
13500 mm
DKP500H45/3N
Cable Management Solutions – BAKS
445450
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
13,500
Cable Management Solutions – BAKS
3.15 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
DKP500H45/6N
Cable Management Solutions – BAKS
445550
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
13,500
Cable Management Solutions – BAKS
3.15 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
16200 mm
DKP600H45/3N
Cable Management Solutions – BAKS
445460
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
16,200
Cable Management Solutions – BAKS
3.43 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
DKP600H45/6N
Cable Management Solutions – BAKS
445560
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
16,200
Cable Management Solutions – BAKS
3.43 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
