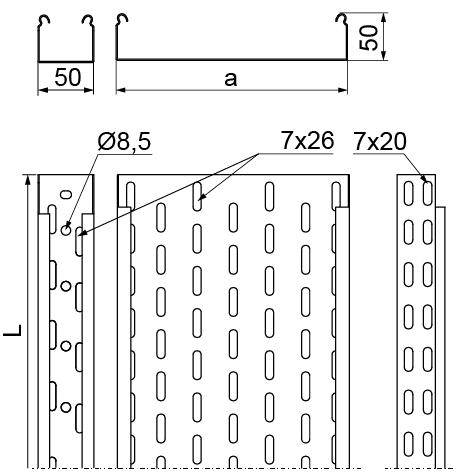

KCD...H50 Cable Tray

1.2
Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

NOTE!
The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays
can be joined only by means of connectors (no cut-outs in the
tray’s side). Use SGKM6x12 or SGM6x12 screws



Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Length L (mm) Weight (1m) (kg) Quantity in box (pcs. / m.) Effective section
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
2300 mm
KCD50H50/3
Cable Management Solutions – BAKS
151205
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
1.33 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
2,300
Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
4800 mm
KCD100H50/3
Cable Management Solutions – BAKS
151210
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
1.75 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
4,800
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
9800 mm
KCD200H50/3
Cable Management Solutions – BAKS
151220
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
2.53 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
9,800
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
14800 mm
KCD300H50/3
Cable Management Solutions – BAKS
151230
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
3.28 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
14,800
Add
