Cable route branching.
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
– use 8 LDCH...N connectors and 64 sets of SGKM8x14 or SGM8x14 bolts for mounting

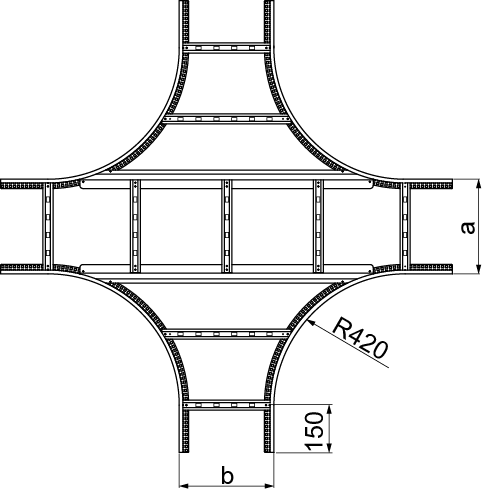

– for non-standard orders specify dimension a and b (if a=200 and b=400 the ordered fitting should have the designation CZD...200/400/200/400H...)
