TDC...H100N Horizontal Tee

2.0
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 6 LDCH... connectors and 48 sets of SGKM8x14 or SGM8x14 bolts for mounting

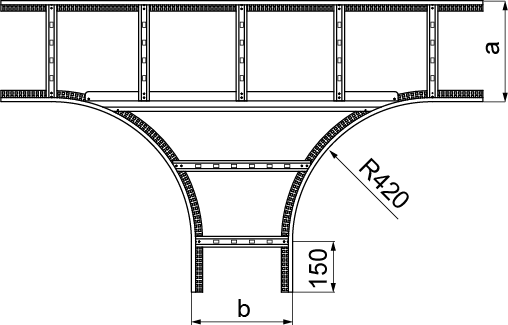

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the designation TD...400/600/400H...)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Szerokość a=b (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
TDC100H100N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
8.10
Cable Management Solutions – BAKS
492110
Cable Management Solutions – BAKS
1
Plik *.std Add
TDC200H100N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
9.13
Cable Management Solutions – BAKS
492120
Cable Management Solutions – BAKS
1
Plik *.std Add
TDC300H100N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
10.17
Cable Management Solutions – BAKS
492130
Cable Management Solutions – BAKS
1
Plik *.std Add
TDC400H100N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
11.23
Cable Management Solutions – BAKS
492140
Cable Management Solutions – BAKS
1
Plik *.std Add
TDC500H100N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
12.25
Cable Management Solutions – BAKS
492150
Cable Management Solutions – BAKS
1
Plik *.std Add
TDC600H100N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
13.30
Cable Management Solutions – BAKS
492160
Cable Management Solutions – BAKS
1
Plik *.std Add
