3.0

Information

Routing vertical cable routes of various types.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– the use of a new rung with increased strength parameters stiffens the ladder

– the possibility of mounting cables in UKZ/UKZO... and UK/UKO... and UKZP... and UKP... clamps

– special bolts (with a flattened head) for mounting the rungs allow direct mounting ladder to the wall

– option E – only for sections up to 3 m

Product versions

Add

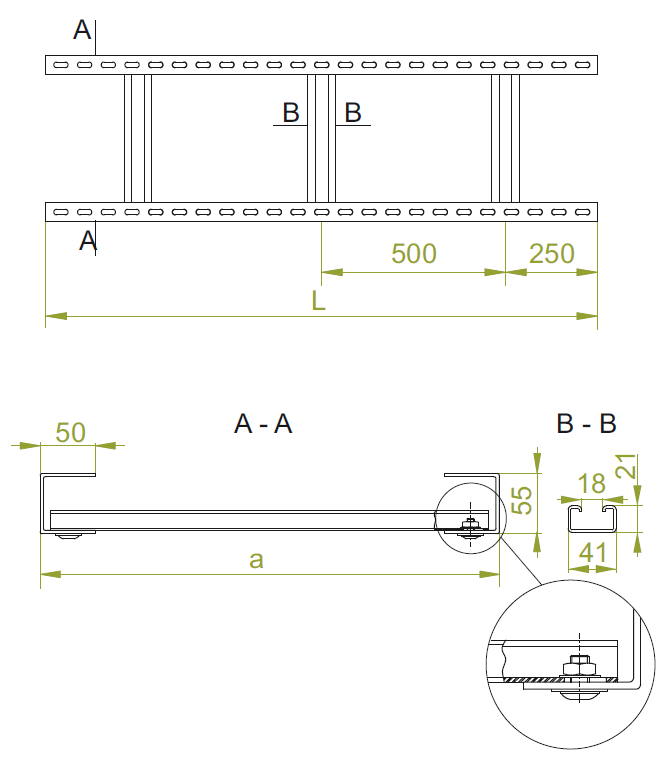

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
200 mm mm
	DM200H55/3	404620	200	3 000 mm	6.10 kg	1 / 3 pcs. / m.	Add
	DM200H55/6	404720	200	6 000 mm	6.10 kg	1 / 6 pcs. / m.	Add
300 mm mm
	DM300H55/3	404630	300	3 000 mm	6.36 kg	1 / 3 pcs. / m.	Add
	DM300H55/6	404730	300	6 000 mm	6.36 kg	1 / 6 pcs. / m.	Add
400 mm mm
	DM400H55/3	404640	400	3 000 mm	6.62 kg	1 / 3 pcs. / m.	Add
	DM400H55/6	404740	400	6 000 mm	6.62 kg	1 / 6 pcs. / m.	Add
500 mm mm
	DM500H55/3	404650	500	3 000 mm	6.88 kg	1 / 3 pcs. / m.	Add
	DM500H55/6	404750	500	6 000 mm	6.88 kg	1 / 6 pcs. / m.	Add
600 mm mm
	DM600H55/3	404660	600	3 000 mm	7.14 kg	1 / 3 pcs. / m.	Add
	DM600H55/6	404760	600	6 000 mm	7.14 kg	1 / 6 pcs. / m.	Add
700 mm mm
	DM700H55/3	404670	700	3 000 mm	7.44 kg	1 / 3 pcs. / m.	Add
	DM700H55/6	404770	700	6 000 mm	7.44 kg	1 / 6 pcs. / m.	Add
800 mm mm
	DM800H55/3	404680	800	3 000 mm	7.72 kg	1 / 3 pcs. / m.	Add
	DM800H55/6	404780	800	6 000 mm	7.72 kg	1 / 6 pcs. / m.	Add
900 mm mm
	DM900H55/3	404690	900	3 000 mm	7.98 kg	1 / 3 pcs. / m.	Add
	DM900H55/6	404790	900	6 000 mm	7.98 kg	1 / 6 pcs. / m.	Add
1000 mm mm
	DM1000H55/3	404611	1,000	3 000 mm	8.26 kg	1 / 3 pcs. / m.	Add
	DM1000H55/6	404800	1,000	6 000 mm	8.26 kg	1 / 6 pcs. / m.	Add
