DDMC...H55 Vertical Cable Ladder

2.0 3.0 5.0
2.0 Cable Management Solutions – BAKS
Information

Routing vertical cable routes of various types.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– the use of a new rung with increased strength parameters stiffens the ladder

– the possibility of mounting cables in UKZ/UKZO... and UK/UKO... and UKZP... and UKP... clamps

– special bolts (with a flattened head) for mounting the rungs allow direct mounting ladder to the wall

– option E – only for sections up to 3 m

– the use of a new rung with increased strength parameters stiffens the ladder
– the possibility of mounting cables in UKZ/UKZO... and UK/UKO... and UKZP... and UKP... clamps
– special bolts (with a flattened head) for mounting the rungs allow direct mounting ladder to the wall
– option E – only for sections up to 3 m
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

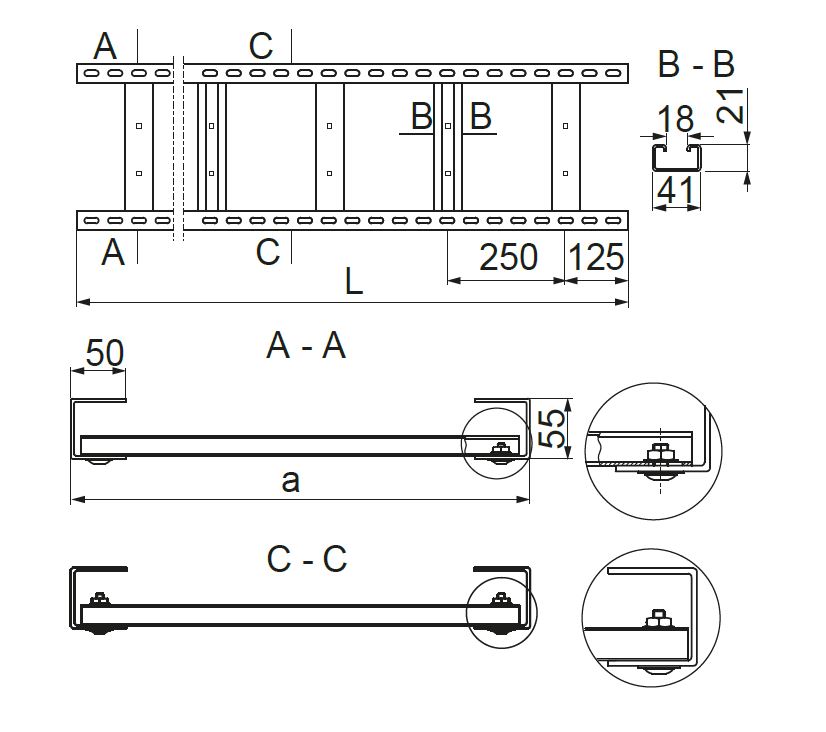

Symbol Catalogue number Width a (mm) Length L (mm) Weight (1m) (kg) Quantity in box (pcs. / m.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
DDMC200H55/3
Cable Management Solutions – BAKS
403320
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
5.08 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC200H55/6
Cable Management Solutions – BAKS
403420
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
5.08 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
DDMC300H55/3
Cable Management Solutions – BAKS
403330
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
5.60 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC300H55/6
Cable Management Solutions – BAKS
403430
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
5.60 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
DDMC400H55/3
Cable Management Solutions – BAKS
403340
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.12 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC400H55/6
Cable Management Solutions – BAKS
403440
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
6.12 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
DDMC500H55/3
Cable Management Solutions – BAKS
403350
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.64 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC500H55/6
Cable Management Solutions – BAKS
403450
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
6.64 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
DDMC600H55/3
Cable Management Solutions – BAKS
403360
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
7.16 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC600H55/6
Cable Management Solutions – BAKS
403460
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
7.16 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
700 mm
Cable Management Solutions – BAKS
mm
DDMC700H55/3
Cable Management Solutions – BAKS
403370
Cable Management Solutions – BAKS
700
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
7.76 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC700H55/6
Cable Management Solutions – BAKS
403470
Cable Management Solutions – BAKS
700
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
7.76 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
800 mm
Cable Management Solutions – BAKS
mm
DDMC800H55/3
Cable Management Solutions – BAKS
403380
Cable Management Solutions – BAKS
800
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.32 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC800H55/6
Cable Management Solutions – BAKS
403480
Cable Management Solutions – BAKS
800
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
8.32 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
900 mm
Cable Management Solutions – BAKS
mm
DDMC900H55/3
Cable Management Solutions – BAKS
403390
Cable Management Solutions – BAKS
900
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.84 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC900H55/6
Cable Management Solutions – BAKS
403490
Cable Management Solutions – BAKS
900
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
8.84 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
1000 mm
Cable Management Solutions – BAKS
mm
DDMC1000H55/3
Cable Management Solutions – BAKS
403391
Cable Management Solutions – BAKS
1,000
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
9.40 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDMC1000H55/6
Cable Management Solutions – BAKS
403491
Cable Management Solutions – BAKS
1,000
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
9.40 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
