Conducting cable routing on ships, platforms and other marine facilities.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

Additional information

– use LDOWH40 connectors and SGKFM8x14 bolts to connect the ladders

– for angled connection use LVKW...H40 connectors and SGKFM8x16 bolts

– on request it is possible to make ladders of 2 m in length

Product versions

Add

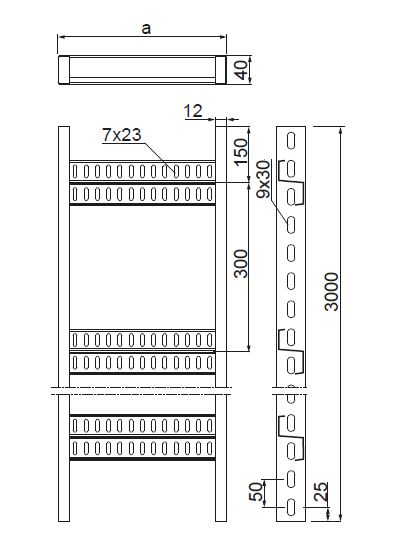

	Symbol	Width a (mm)	Length L (mm)	Sheet thickness (mm)	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
100 mm mm
	DOZCP100H40/3	100	3 000 mm	1.50	2.26 kg	434011	1 / 3 pcs. / m.	Add
150 mm mm
	DOZCP150H40/3	150	3 000 mm	1.50	2.50 kg	434015	1 / 3 pcs. / m.	Add
200 mm mm
	DOZCP200H40/3	200	3 000 mm	1.50	2.73 kg	434021	1 / 3 pcs. / m.	Add
250 mm mm
	DOZCP250H40/3	250	3 000 mm	1.50	2.97 kg	434025	1 / 3 pcs. / m.	Add
300 mm mm
	DOZCP300H40/3	300	3 000 mm	1.50	3.67 kg	434031	1 / 3 pcs. / m.	Add
350 mm mm
	DOZCP350H40/3	350	3 000 mm	1.50	3.98 kg	434035	1 / 3 pcs. / m.	Add
400 mm mm
	DOZCP400H40/3	400	3 000 mm	1.50	4.29 kg	434041	1 / 3 pcs. / m.	Add
500 mm mm
	DOZCP500H40/3	500	3 000 mm	1.50	4.92 kg	434051	1 / 3 pcs. / m.	Add
600 mm mm
	DOZCP600H40/3	600	3 000 mm	1.50	5.54 kg	434061	1 / 3 pcs. / m.	Add

Load

Other sheet thickness

DOZE...H40/3 4.0

Deflection diagram

Diagram units

Q_dop. (kN/m)

0.0

L (m)

0.0
