Information

Conducting cable routing on ships, platforms and other marine facilities.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

Additional information

– rung thickness 1.5 mm

– use LDOUH40 connectors and SGKFM8x16 bolts to connect the ladders

– for angled connection use LVK...H40 connectors and SGKFM8x16 bolts

– on request it is possible to make ladders of 2 m in length

Product versions

Add

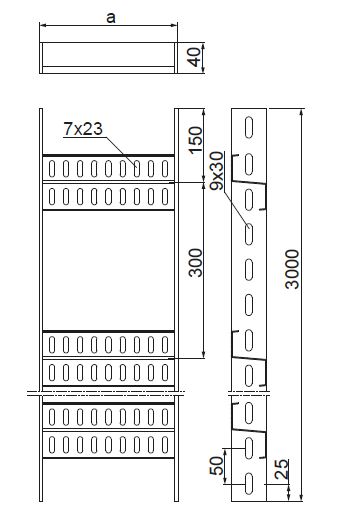

	Symbol	Catalogue number	Width a (mm)	Weight (1m) (kg)	Quantity in box (m.)
100 mm mm
	DOZE100H40/3	424011	100	3.03 kg	3 pcs.	Add
150 mm mm
	DOZE150H40/3	424016	150	3.28 kg	3 pcs.	Add
200 mm mm
	DOZE200H40/3	414021	200	3.49 kg	3 pcs.	Add
250 mm mm
	DOZE250H40/3	414251	250	3.73 kg	3 pcs.	Add
300 mm mm
	DOZE300H40/3	414031	300	4.05 kg	3 pcs.	Add
350 mm mm
	DOZE350H40/3	414531	350	4.30 kg	3 pcs.	Add
400 mm mm
	DOZE400H40/3	414041	400	4.56 kg	3 pcs.	Add
500 mm mm
	DOZE500H40/3	414051	500	5.07 kg	3 pcs.	Add
600 mm mm
	DOZE600H40/3	414061	600	5.58 kg	3 pcs.	Add
700 mm mm
	DOZE700H40/3	414071	700	6.09 kg	3 pcs.	Add
800 mm mm
	DOZE800H40/3	414081	800	6.60 kg	3 pcs.	Add
900 mm mm
	DOZE900H40/3	414091	900	7.11 kg	3 pcs.	Add
1000 mm mm
	DOZE1000H40/3	414012	1,000	7.62 kg	3 pcs.	Add

Load

Other sheet thickness

DOZCP...H40/3 1.5

Deflection diagram

Diagram units

Q_dop. (kN/m)

0.0

L (m)

0.0
