Information

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows the use of supports even every 8 m.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– * product available for order over 200 m

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for lengths up to 3 m – execution with less dense perforation in the bottom of the board (it

is possible to deliver to the customer connected with couplings two 3 m sections giving a length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet

metal with a thickness of 1.2 or 2.5 mm

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for lengths up to 3 m – execution with less dense perforation in the bottom of the board (it

is possible to deliver to the customer connected with couplings two 3 m sections giving a length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet

metal with a thickness of 1.2 or 2.5 mm

Product versions

Add

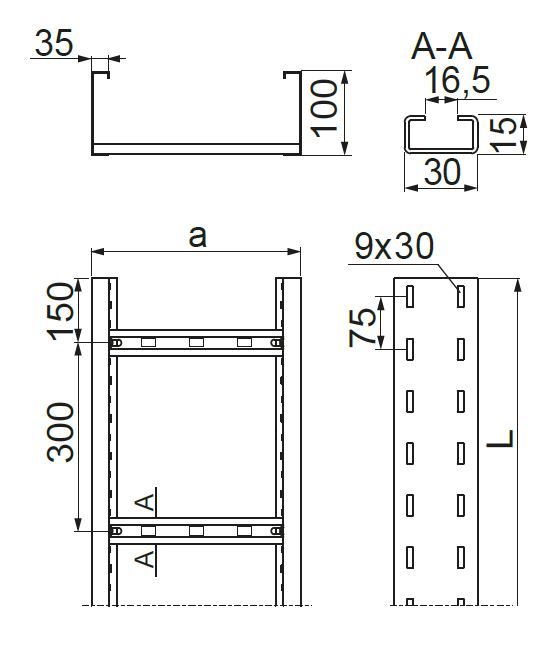

	Symbol	Length L (mm)	Width a (mm)	Catalogue number	Weight (1m) (kg)	Effective section	Quantity in box (pcs. / m.)
200 mm 16400 mm
	DSC200H100/3	3 000 mm	200	410123	5.75 kg	16,400	2 / 6 pcs. / m.	Add
	DSC200H100/6	6 000 mm	200	410226	5.75 kg	16,400	2 / 12 pcs. / m.	Add
300 mm 24600 mm
	DSC300H100/3	3 000 mm	300	410133	5.89 kg	24,600	2 / 6 pcs. / m.	Add
	DSC300H100/6	6 000 mm	300	410236	5.89 kg	24,600	2 / 12 pcs. / m.	Add
400 mm 32800 mm
	DSC400H100/3	3 000 mm	400	410143	6.38 kg	32,800	2 / 6 pcs. / m.	Add
	DSC400H100/6	6 000 mm	400	410246	6.38 kg	32,800	2 / 12 pcs. / m.	Add
500 mm 41000 mm
	DSC500H100/3	3 000 mm	500	410153	6.66 kg	41,000	2 / 6 pcs. / m.	Add
	DSC500H100/6	6 000 mm	500	410256	6.66 kg	41,000	2 / 12 pcs. / m.	Add
600 mm 49200 mm
	DSC600H100/3	3 000 mm	600	410163	6.91 kg	49,200	2 / 6 pcs. / m.	Add
	DSC600H100/6	6 000 mm	600	410266	6.91 kg	49,200	2 / 12 pcs. / m.	Add
