1.5

Information

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows the use of supports even every 8 m.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– * product available for order over 200 m

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for lengths up to 3 m – execution with less dense perforation in the bottom of the board (it

is possible to deliver to the customer connected with couplings two 3 m sections giving a length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet

metal with a thickness of 1.2 or 2.5 mm

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for lengths up to 3 m – execution with less dense perforation in the bottom of the board (it

is possible to deliver to the customer connected with couplings two 3 m sections giving a length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet

metal with a thickness of 1.2 or 2.5 mm

Product versions

Add

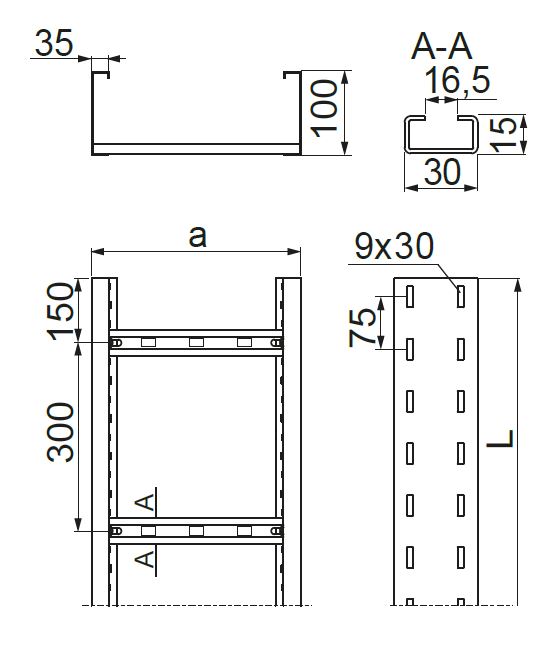

	Symbol	Length L (mm)	Width a (mm)	Catalogue number	Quantity in box (pcs. / m.)	Weight (1m) (kg)	Effective section
200 mm 16400 mm
	DSP200H100/3	3 000 mm	200	410020	2 / 6 pcs. / m.	4.74 kg	16,400	Add
	DSP200H100/6	6 000 mm	200	410021	2 / 12 pcs. / m.	4.74 kg	16,400	Add
300 mm 24600 mm
	DSP300H100/3	3 000 mm	300	410030	2 / 6 pcs. / m.	5.02 kg	24,600	Add
	DSP300H100/6	6 000 mm	300	410031	2 / 12 pcs. / m.	5.02 kg	24,600	Add
400 mm 32800 mm
	DSP400H100/3	3 000 mm	400	410040	2 / 6 pcs. / m.	5.31 kg	32,800	Add
	DSP400H100/6	6 000 mm	400	410041	2 / 12 pcs. / m.	5.31 kg	32,800	Add
500 mm 41000 mm
	DSP500H100/3	3 000 mm	500	410050	2 / 6 pcs. / m.	5.60 kg	41,000	Add
	DSP500H100/6	6 000 mm	500	410051	2 / 12 pcs. / m.	5.60 kg	41,000	Add
600 mm 49200 mm
	DSP600H100/3	3 000 mm	600	410060	2 / 6 pcs. / m.	5.89 kg	49,200	Add
	DSP600H100/6	6 000 mm	600	410061	2 / 12 pcs. / m.	5.89 kg	49,200	Add
