Information

Routing a vertical and optionally horizontal cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– the possibility of mounting cables in UK/UKO... and UKP... clamps

Product versions

Add

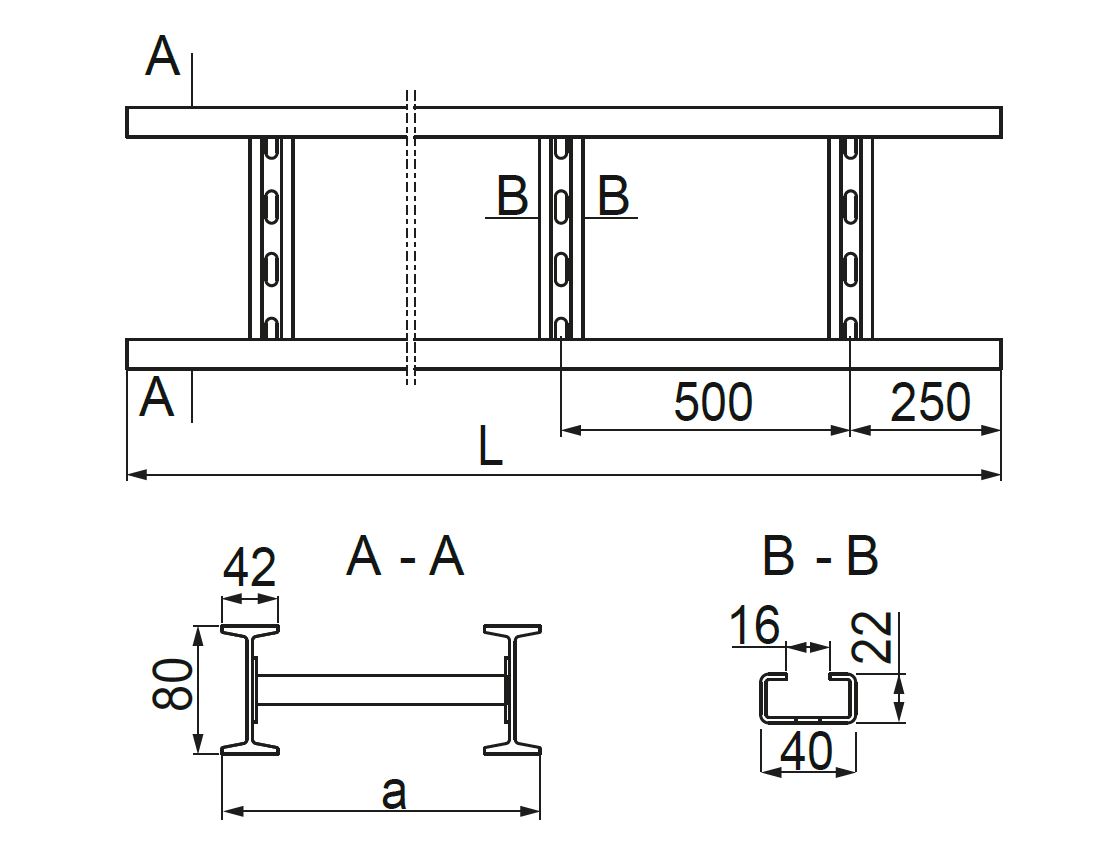

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
200 mm mm
	DSH200H80/3	405020	200	3 000 mm	12.58 kg	1 / 3 pcs. / m.	Add
	DSH200H80/6	405120	200	6 000 mm	12.58 kg	1 / 6 pcs. / m.	Add
300 mm mm
	DSH300H80/3	405030	300	3 000 mm	12.92 kg	1 / 3 pcs. / m.	Add
	DSH300H80/6	405130	300	6 000 mm	12.92 kg	1 / 6 pcs. / m.	Add
400 mm mm
	DSH400H80/3	405040	400	3 000 mm	13.26 kg	1 / 3 pcs. / m.	Add
	DSH400H80/6	405140	400	6 000 mm	13.26 kg	1 / 6 pcs. / m.	Add
500 mm mm
	DSH500H80/3	405050	500	3 000 mm	13.62 kg	1 / 3 pcs. / m.	Add
	DSH500H80/6	405150	500	6 000 mm	13.62 kg	1 / 6 pcs. / m.	Add
600 mm mm
	DSH600H80/3	405060	600	3 000 mm	13.96 kg	1 / 3 pcs. / m.	Add
	DSH600H80/6	405160	600	6 000 mm	13.96 kg	1 / 6 pcs. / m.	Add
700 mm mm
	DSH700H80/3	405070	700	3 000 mm	14.30 kg	1 / 3 pcs. / m.	Add
	DSH700H80/6	405170	700	6 000 mm	14.30 kg	1 / 6 pcs. / m.	Add
800 mm mm
	DSH800H80/3	405080	800	3 000 mm	14.66 kg	1 / 3 pcs. / m.	Add
	DSH800H80/6	405180	800	6 000 mm	14.66 kg	1 / 6 pcs. / m.	Add
900 mm mm
	DSH900H80/3	405090	900	3 000 mm	15 kg	1 / 3 pcs. / m.	Add
	DSH900H80/6	405190	900	6 000 mm	15 kg	1 / 6 pcs. / m.	Add
1000 mm mm
	DSH1000H80/3	405011	1,000	3 000 mm	15.34 kg	1 / 3 pcs. / m.	Add
	DSH1000H80/6	405111	1,000	6 000 mm	15.34 kg	1 / 6 pcs. / m.	Add
