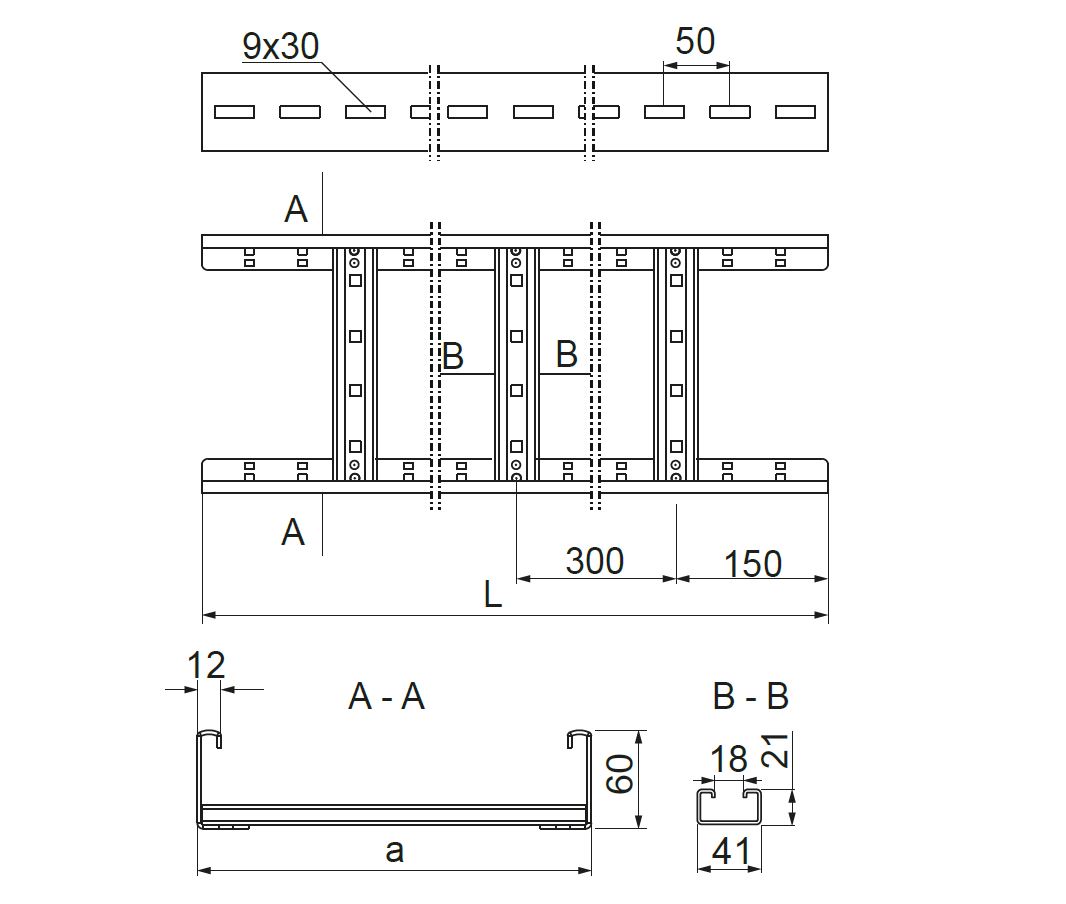

DUVC...H60 Cable Ladder

2.0

Information

Routing vertical cable routes of various types.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– the use of a new rung with increased strength parameters stiffens the ladder

– the possibility of mounting cables in UKZ/UKZO... and UK/UKO... and UKZP... and UKP... clamps

– option E – only for sections up to 3 m – design with less dense perforation in the bottom of the board

Product versions

Add

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
100 mm mm
	DUVC100H60/3	466611	100	3 000 mm	3.22 kg	4 / 12 pcs. / m.	Add
	DUVC100H60/6	466711	100	6 000 mm	3.22 kg	2 / 12 pcs. / m.	Add
200 mm mm
	DUVC200H60/3	466621	200	3 000 mm	3.58 kg	4 / 12 pcs. / m.	Add
	DUVC200H60/6	466721	200	6 000 mm	3.58 kg	2 / 12 pcs. / m.	Add
300 mm mm
	DUVC300H60/3	466631	300	3 000 mm	3.96 kg	2 / 6 pcs. / m.	Add
	DUVC300H60/6	466731	300	6 000 mm	3.96 kg	2 / 12 pcs. / m.	Add
400 mm mm
	DUVC400H60/3	466641	400	3 000 mm	4.50 kg	2 / 6 pcs. / m.	Add
	DUVC400H60/6	466741	400	6 000 mm	4.50 kg	2 / 12 pcs. / m.	Add
500 mm mm
	DUVC500H60/3	466651	500	3 000 mm	4.67 kg	2 / 6 pcs. / m.	Add
	DUVC500H60/6	466751	500	6 000 mm	4.67 kg	2 / 12 pcs. / m.	Add
600 mm mm
	DUVC600H60/3	466661	600	3 000 mm	5.05 kg	2 / 6 pcs. / m.	Add
	DUVC600H60/6	466761	600	6 000 mm	5.05 kg	2 / 12 pcs. / m.	Add
