1.2

Information

Routing a cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for sections up to 3 m – design with less dense perforation in the bottom of the board

– on large order ladders available in lengths of 2 m and widths of 150 and 250 mm

– in the case of mounting ladders horizontally – rungs to the wall, it is recommended to use ladders with rungs double riveted to the board

Product versions

Add

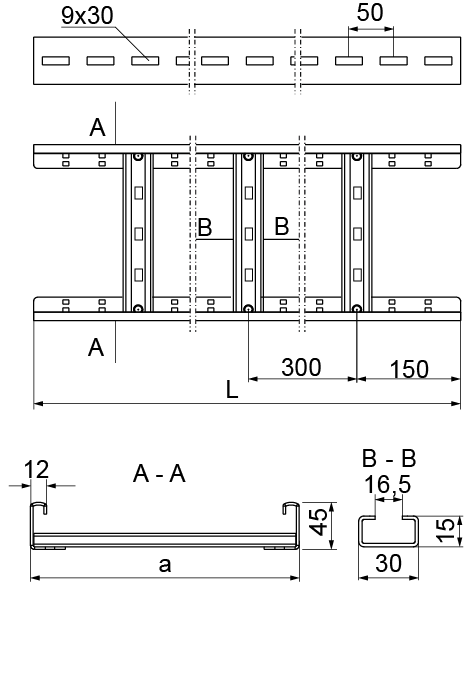

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
100 mm 2700 mm
	DUD100H45/3N	446010	100	3 000 mm	1.71 kg	4 / 12 pcs. / m.	2,700	Add
	DUD100H45/6N	446110	100	6 000 mm	1.71 kg	2 / 12 pcs. / m.	2,700	Add
200 mm 5400 mm
	DUD200H45/3N	446020	200	3 000 mm	1.94 kg	4 / 12 pcs. / m.	5,400	Add
	DUD200H45/6N	446120	200	6 000 mm	1.94 kg	2 / 12 pcs. / m.	5,400	Add
300 mm 8100 mm
	DUD300H45/3N	446030	300	3 000 mm	2.17 kg	4 / 12 pcs. / m.	8,100	Add
	DUD300H45/6N	446130	300	6 000 mm	2.17 kg	2 / 12 pcs. / m.	8,100	Add
400 mm 10800 mm
	DUD400H45/3N	446040	400	3 000 mm	2.40 kg	2 / 6 pcs. / m.	10,800	Add
	DUD400H45/6N	446140	400	6 000 mm	2.40 kg	2 / 12 pcs. / m.	10,800	Add
500 mm 13500 mm
	DUD500H45/3N	446050	500	3 000 mm	2.62 kg	2 / 6 pcs. / m.	13,500	Add
	DUD500H45/6N	446150	500	6 000 mm	2.62 kg	2 / 12 pcs. / m.	13,500	Add
600 mm 16200 mm
	DUD600H45/3N	446060	600	3 000 mm	2.85 kg	2 / 6 pcs. / m.	16,200	Add
	DUD600H45/6N	446160	600	6 000 mm	2.85 kg	2 / 12 pcs. / m.	16,200	Add
