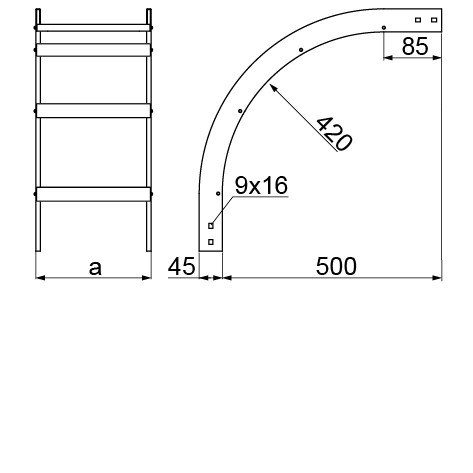

LPDZP...H45N 90° Vertical Bend - External

1.5 Cable Management Solutions – BAKS
Information

Diversion in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use 4 Straight Connector LDCH
and 16 sets of Screw SGKM8x14 or SGM8x14

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LPDZP100H45N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
1.55
Cable Management Solutions – BAKS
449010
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LPDZP200H45N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
1.91
Cable Management Solutions – BAKS
449020
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LPDZP300H45N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
2.31
Cable Management Solutions – BAKS
449030
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LPDZP400H45N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
2.67
Cable Management Solutions – BAKS
449040
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LPDZP500H45N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3.07
Cable Management Solutions – BAKS
449050
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LPDZP600H45N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3.47
Cable Management Solutions – BAKS
449060
Cable Management Solutions – BAKS
1
Add
