Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Joining cable tray KA... sections together only through the use
of connectors (lack of cut in the flange at the end of side profile). For the
assembly use Screw Sets SGKM6x12 or SGM6x12.

NOTE!
The 1.5 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed.

Product versions

Add

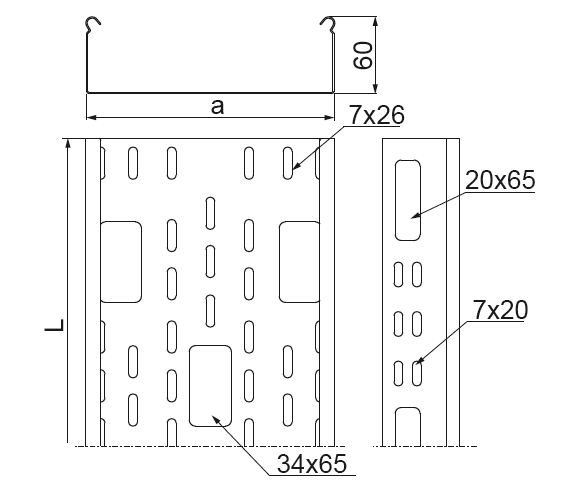

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 2900 mm
	KAJ50H60/3	170716	50	3 000 mm	1.18 kg	4 / 12 pcs. / m.	2,900	Add
100 mm 5800 mm
	KAJ100H60/3	170816	100	3 000 mm	1.47 kg	4 / 12 pcs. / m.	5,800	Add
150 mm 8800 mm
	KAJ150H60/3	170916	150	3 000 mm	1.79 kg	4 / 12 pcs. / m.	8,800	Add
200 mm 11800 mm
	KAJ200H60/3	171016	200	3 000 mm	2.07 kg	4 / 12 pcs. / m.	11,800	Add
300 mm 17800 mm
	KAJ300H60/3	171116	300	3 000 mm	2.69 kg	2 / 6 pcs. / m.	17,800	Add
400 mm 23800 mm
	KAJ400H60/3	171216	400	3 000 mm	3.29 kg	2 / 6 pcs. / m.	23,800	Add
