Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request

Possibility of joining cable tray sections together through sliding one
into another and connector-free assembly. For the assembly use Screw
Sets SGK M6x12 or SG M6x12.
NOTE! The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays can
be joined only by means of connectors (no cut-outs in the tray’s side).

Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.

Product versions

Add

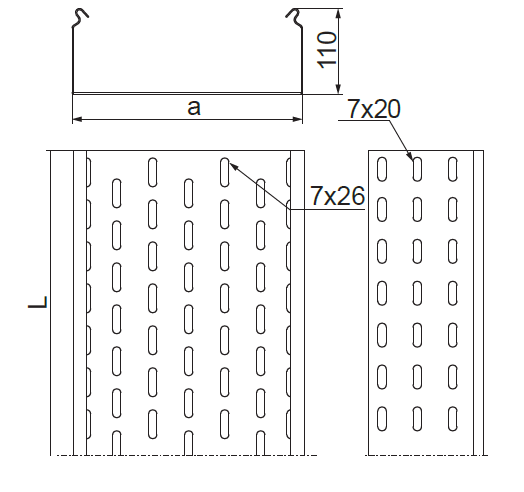

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
100 mm 10800 mm
	KCJ100H110/3	120410	100	3 000 mm	2.04 kg	4 / 12 pcs. / m.	10,800	Add
200 mm 21800 mm
	KCJ200H110/3	120420	200	3 000 mm	2.63 kg	4 / 12 pcs. / m.	21,800	Add
300 mm 32800 mm
	KCJ300H110/3	120430	300	3 000 mm	3.23 kg	2 / 6 pcs. / m.	32,800	Add
400 mm 43800 mm
	KCJ400H110/3	120440	400	3 000 mm	3.88 kg	2 / 6 pcs. / m.	43,800	Add
500 mm 54800 mm
	KCJ500H110/3	120450	500	3 000 mm	4.56 kg	2 / 6 pcs. / m.	54,800	Add
600 mm 65800 mm
	KCJ600H110/3	120460	600	3 000 mm	5.16 kg	2 / 6 pcs. / m.	65,800	Add
