Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x10 or SGM6x10

Product versions

Add

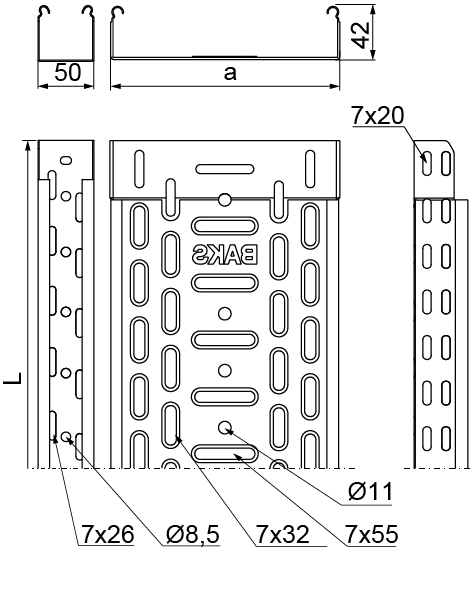

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 1900 mm
	KGJ/KCJ50H42/2	140505	50	2 000 mm	0.99 kg	4 / 8 pcs. / m.	1,900	Add
	KGJ/KCJ50H42/3	140605	50	3 000 mm	0.99 kg	4 / 12 pcs. / m.	1,900	Add
100 mm 4000 mm
	KGJ100H42/3	140816	100	3 000 mm	1.30 kg	4 / 12 pcs. / m.	4,000	Add
200 mm 8200 mm
	KGJ200H42/3	141016	200	3 000 mm	1.87 kg	4 / 12 pcs. / m.	8,200	Add
300 mm 12400 mm
	KGJ300H42/3	141116	300	3 000 mm	2.52 kg	4 / 12 pcs. / m.	12,400	Add
400 mm 16600 mm
	KGJ400H42/3	141216	400	3 000 mm	3.17 kg	2 / 6 pcs. / m.	16,600	Add
