Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

Product versions

Add

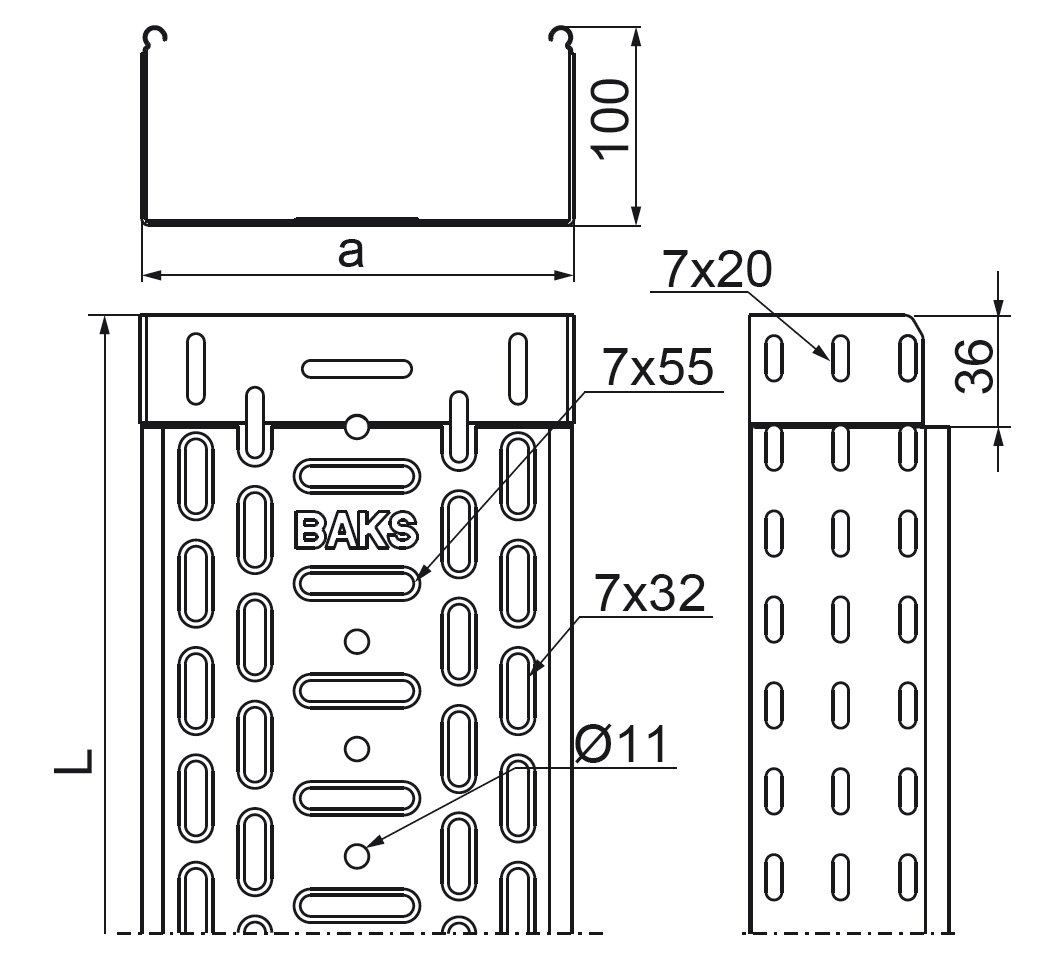

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
100 mm 9800 mm
	KGL100H100/3	110116	100	3 000 mm	1.53 kg	4 / 12 pcs. / m.	9,800	Add
150 mm 14800 mm
	KGL150H100/3	110216	150	3 000 mm	1.76 kg	4 / 12 pcs. / m.	14,800	Add
200 mm 19800 mm
	KGL200H100/3	110316	200	3 000 mm	1.96 kg	4 / 12 pcs. / m.	19,800	Add
300 mm 29800 mm
	KGL300H100/3	110416	300	3 000 mm	2.46 kg	4 / 12 pcs. / m.	29,800	Add
400 mm 39800 mm
	KGL400H100/3	110516	400	3 000 mm	2.95 kg	2 / 6 pcs. / m.	39,800	Add
500 mm 49800 mm
	KGL500H100/3	110616	500	3 000 mm	3.43 kg	2 / 6 pcs. / m.	49,800	Add
600 mm 59800 mm
	KGL600H100/3	110716	600	3 000 mm	3.91 kg	2 / 6 pcs. / m.	59,800	Add
