Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request.

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

Product versions

Add

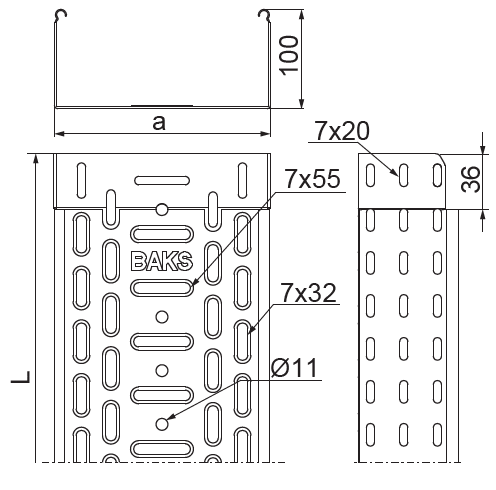

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
100 mm 10800 mm
	KGL100H110/3	120110	100	3 000 mm	1.70 kg	4 / 12 pcs. / m.	10,800	Add
150 mm 16300 mm
	KGL150H110/3	120115	150	3 000 mm	1.91 kg	4 / 12 pcs. / m.	16,300	Add
200 mm 21800 mm
	KGL200H110/3	120120	200	3 000 mm	2.10 kg	4 / 12 pcs. / m.	21,800	Add
300 mm 32800 mm
	KGL300H110/3	120130	300	3 000 mm	2.53 kg	4 / 12 pcs. / m.	32,800	Add
