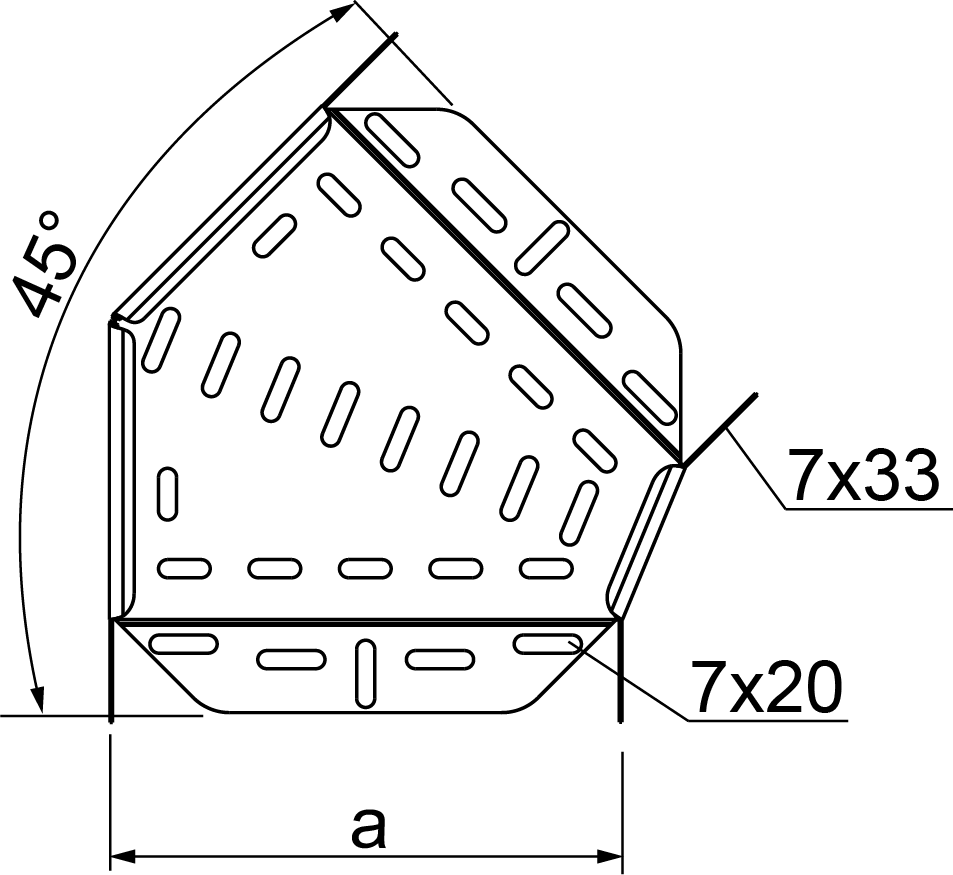

KKMJ...H110 Horizontal Bend 45°

1.0
Information

Diversions in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Weight 1 pc. (kg) Catalogue number Quantity (pcs.) Size a (mm)
KKMJ100H110
Cable Management Solutions – BAKS
0.40
Cable Management Solutions – BAKS
122310
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
100 		Add
KKMJ150H110
Cable Management Solutions – BAKS
0.62
Cable Management Solutions – BAKS
122315
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
150 		Add
KKMJ200H110
Cable Management Solutions – BAKS
0.85
Cable Management Solutions – BAKS
122320
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
200 		Add
KKMJ300H110
Cable Management Solutions – BAKS
1.29
Cable Management Solutions – BAKS
122330
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
300 		Add
