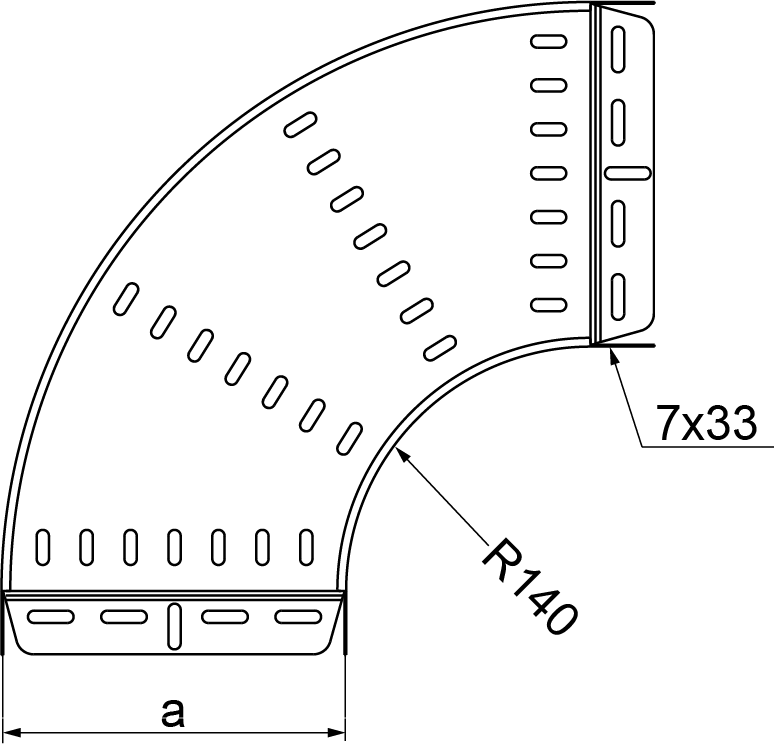

KKPP...H110 Horizontal Bend 90°

1.5
Information

Diversions in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Weight 1 pc. (kg) Quantity (pcs.) Size a (mm)
KKPP400H110
Cable Management Solutions – BAKS
121214
Cable Management Solutions – BAKS
4.11
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
400 		Add
KKPP500H110
Cable Management Solutions – BAKS
121314
Cable Management Solutions – BAKS
5.58
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
500 		Add
KKPP600H110
Cable Management Solutions – BAKS
121414
Cable Management Solutions – BAKS
7.11
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
600 		Add
