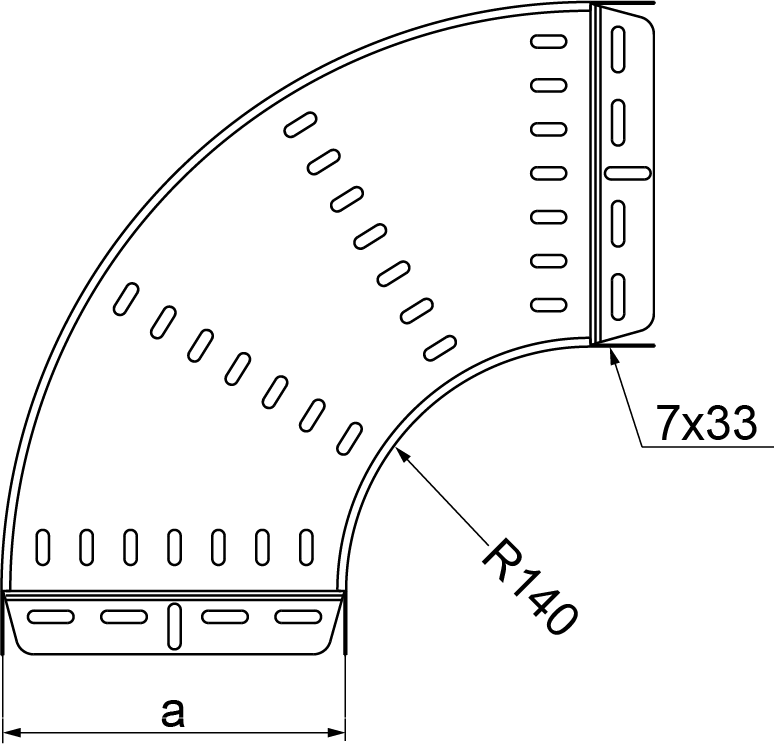

KKPJ...H110 Horizontal Bend 90°

1.0
Information

Diversions in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
No product version selected
Add
Symbol Weight 1 pc. (kg) Catalogue number Quantity (pcs.) Size a (mm)
KKPJ100H110
Cable Management Solutions – BAKS
0.84
Cable Management Solutions – BAKS
120114
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
100 		Add
KKPJ150H110
Cable Management Solutions – BAKS
1.14
Cable Management Solutions – BAKS
120214
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
150 		Add
KKPJ200H110
Cable Management Solutions – BAKS
1.43
Cable Management Solutions – BAKS
120314
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
200 		Add
KKPJ300H110
Cable Management Solutions – BAKS
2.01
Cable Management Solutions – BAKS
120414
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
300 		Add
Examples
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Brak produktów w zestawieniu
Wydrukuj PDF
Zapisz jako XLS
KKBP...H110 Horizontal Bend 90° H110
KKPP...H110 Horizontal Bend 90° H110
Sheet thickness: 1.0 mm
