KNd...H48 Underfloor Trunking 2 Comp.

1.0

Information

Routing subfloor cable routes.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

Product versions

Add

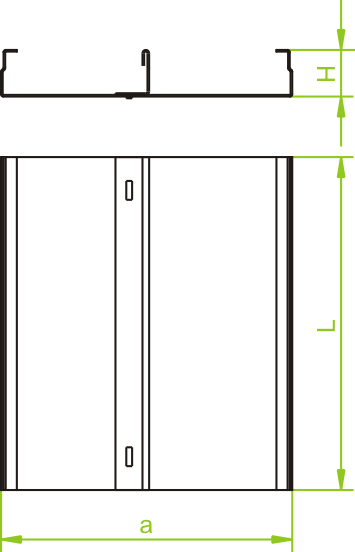

	Symbol	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
175 mm mm
	KNd175H48/2	175	2 000 mm	3.02 kg	540317	6 / 12 pcs. / m.	Add
	KNd175H48/3	175	3 000 mm	3.02 kg	540417	6 / 18 pcs. / m.	Add
190 mm mm
	KNd190H48/2	190	2 000 mm	3.14 kg	540319	6 / 12 pcs. / m.	Add
	KNd190H48/3	190	3 000 mm	3.14 kg	540419	6 / 18 pcs. / m.	Add
240 mm mm
	KNd240H48/2	240	2 000 mm	3.54 kg	540324	6 / 12 pcs. / m.	Add
	KNd240H48/3	240	3 000 mm	3.54 kg	540424	6 / 18 pcs. / m.	Add
250 mm mm
	KNd250H48/2	250	2 000 mm	3.64 kg	540325	4 / 8 pcs. / m.	Add
	KNd250H48/3	250	3 000 mm	3.64 kg	540425	4 / 12 pcs. / m.	Add
340 mm mm
	KNd340H48/2	340	2 000 mm	4.34 kg	540334	4 / 8 pcs. / m.	Add
	KNd340H48/3	340	3 000 mm	4.34 kg	540434	4 / 12 pcs. / m.	Add
350 mm mm
	KNd350H48/2	350	2 000 mm	4.43 kg	540335	4 / 8 pcs. / m.	Add
	KNd350H48/3	350	3 000 mm	4.43 kg	540435	4 / 12 pcs. / m.	Add
