KN...H48 Underfloor Trunking

1.0

Information

Routing subfloor cable routes.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

Product versions

Add

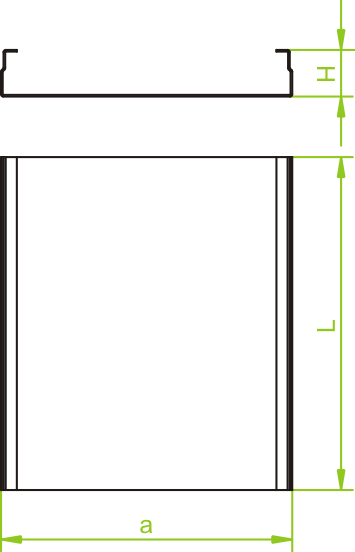

	Symbol	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
175 mm mm
	KN175H48/2	175	2 000 mm	2.40 kg	540117	6 / 12 pcs. / m.	Add
	KN175H48/3	175	3 000 mm	2.40 kg	540217	6 / 18 pcs. / m.	Add
190 mm mm
	KN190H48/2	190	2 000 mm	2.52 kg	540119	6 / 12 pcs. / m.	Add
	KN190H48/3	190	3 000 mm	2.52 kg	540219	6 / 18 pcs. / m.	Add
240 mm mm
	KN240H48/2	240	2 000 mm	2.92 kg	540124	6 / 12 pcs. / m.	Add
	KN240H48/3	240	3 000 mm	2.92 kg	540224	6 / 18 pcs. / m.	Add
250 mm mm
	KN250H48/2	250	2 000 mm	3.02 kg	540125	4 / 8 pcs. / m.	Add
	KN250H48/3	250	3 000 mm	3.02 kg	540225	4 / 12 pcs. / m.	Add
340 mm mm
	KN340H48/2	340	2 000 mm	3.72 kg	540134	4 / 8 pcs. / m.	Add
	KN340H48/3	340	3 000 mm	3.72 kg	540234	4 / 12 pcs. / m.	Add
350 mm mm
	KN350H48/2	350	2 000 mm	3.82 kg	540135	6 / 12 pcs. / m.	Add
	KN350H48/3	350	3 000 mm	3.82 kg	540235	6.3 / 19 pcs. / m.	Add
