KN...H28 Underfloor Trunking

1.0

Information

Routing subfloor cable routes.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

Product versions

Add

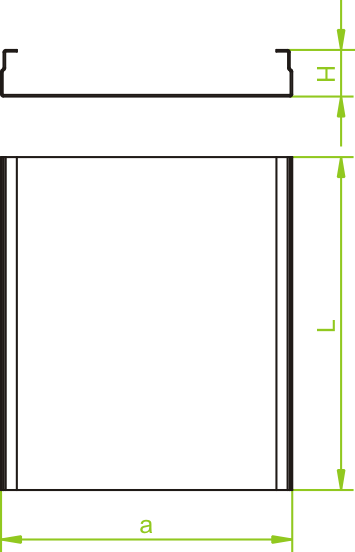

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
175 mm mm
	KN175H28/2	520117	175	2 000 mm	2.08 kg	6 / 12 pcs. / m.	Add
	KN175H28/3	520217	175	3 000 mm	2.08 kg	6 / 18 pcs. / m.	Add
190 mm mm
	KN190H28/2	520119	190	2 000 mm	2.20 kg	6 / 12 pcs. / m.	Add
	KN190H28/3	520219	190	3 000 mm	2.20 kg	6 / 18 pcs. / m.	Add
240 mm mm
	KN240H28/2	520124	240	2 000 mm	2.60 kg	6 / 12 pcs. / m.	Add
	KN240H28/3	520224	240	3 000 mm	2.60 kg	6 / 18 pcs. / m.	Add
250 mm mm
	KN250H28/2	520125	250	2 000 mm	2.70 kg	4 / 8 pcs. / m.	Add
	KN250H28/3	520225	250	3 000 mm	2.70 kg	4 / 12 pcs. / m.	Add
340 mm mm
	KN340H28/2	520134	340	2 000 mm	3.40 kg	4 / 8 pcs. / m.	Add
	KN340H28/3	520234	340	3 000 mm	3.40 kg	4 / 12 pcs. / m.	Add
350 mm mm
	KN350H28/2	520135	350	2 000 mm	3.50 kg	4 / 8 pcs. / m.	Add
	KN350H28/3	520235	350	3 000 mm	3.50 kg	4 / 12 pcs. / m.	Add
