KNt...H28 Underfloor Trunking 3 Comp.

OK... Fastening Clamp H28

1.0

Information

Routing subfloor cable routes.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

Product versions

Add

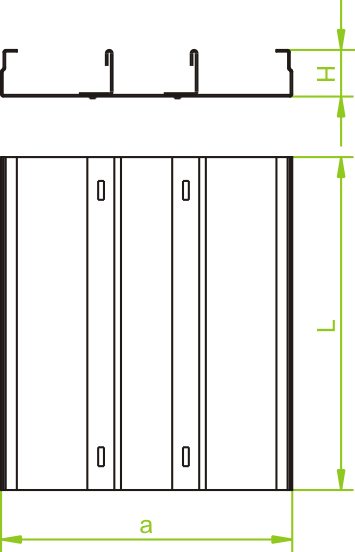

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
175 mm mm
	KNt175H28/2	520517	175	2 000 mm	3.02 kg	6 / 12 pcs. / m.	Add
	KNt175H28/3	520617	175	3 000 mm	3.02 kg	6 / 18 pcs. / m.	Add
190 mm mm
	KNt190H28/2	520519	190	2 000 mm	3.14 kg	6 / 12 pcs. / m.	Add
	KNt190H28/3	520619	190	3 000 mm	3.14 kg	6 / 18 pcs. / m.	Add
240 mm mm
	KNt240H28/2	520524	240	2 000 mm	3.54 kg	6 / 12 pcs. / m.	Add
	KNt240H28/3	520624	240	3 000 mm	3.54 kg	6 / 18 pcs. / m.	Add
250 mm mm
	KNt250H28/2	520525	250	2 000 mm	3.64 kg	4 / 8 pcs. / m.	Add
	KNt250H28/3	520625	250	3 000 mm	3.64 kg	4 / 12 pcs. / m.	Add
340 mm mm
	KNt340H28/2	520534	340	2 000 mm	4.34 kg	4 / 8 pcs. / m.	Add
	KNt340H28/3	520634	340	3 000 mm	4.34 kg	4 / 12 pcs. / m.	Add
350 mm mm
	KNt350H28/2	520535	350	2 000 mm	4.44 kg	4 / 8 pcs. / m.	Add
	KNt350H28/3	520635	350	3 000 mm	4.44 kg	4 / 12 pcs. / m.	Add
