Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.

Product versions

Add

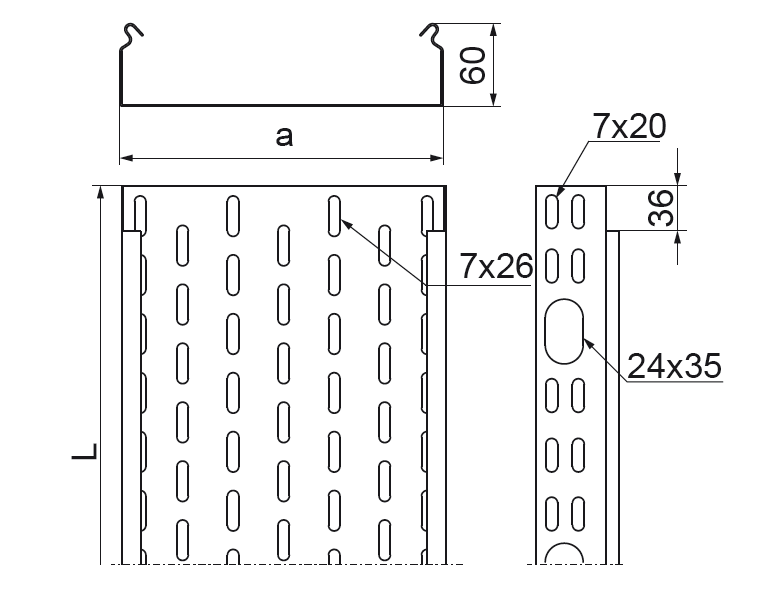

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 2900 mm
	KOJ50H60/3	161524	50	300 mm	1.25 kg	40 / 12 pcs. / m.	2,900	Add
100 mm 5800 mm
	KOJ100H60/3	161610	100	3 000 mm	1.51 kg	4 / 12 pcs. / m.	5,800	Add
150 mm 8800 mm
	KOJ150H60/3	161615	150	3 000 mm	1.84 kg	4 / 12 pcs. / m.	8,800	Add
200 mm 11800 mm
	KOJ200H60/3	161620	200	3 000 mm	2.10 kg	4 / 12 pcs. / m.	11,800	Add
300 mm 17800 mm
	KOJ300H60/3	161630	300	3 000 mm	2.73 kg	2 / 6 pcs. / m.	17,800	Add
400 mm 23800 mm
	KOJ400H60/3	161040	400	3 000 mm	3.32 kg	2 / 6 pcs. / m.	23,800	Add
