2.0

Information

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows the use of supports even every 8 m.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– trays adapted for mounting cable clamps UKZ1/UKZO1, UKZ2, UKZP1 and UKZP2

– option E – only for sections up to 3 m – execution without embossing in the sides and with less dense

perforation in the bottom of the board (there is a possibility of delivering to the customer connected with

couplings two sections of 3 m giving length of 6 m)

– for large orders, it is possible to produce trays with lengths from 2 to 12 m and trays made of sheet metal

with a thickness of 1.2 or 2.5 mm

– * - product available for order over 200 m

Note
Connecting of trays with the use of couplers only.

Product versions

Add

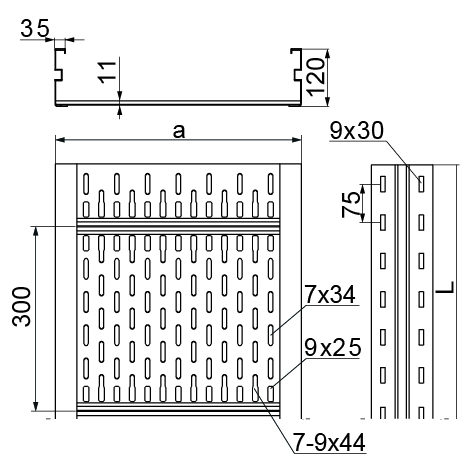

	Symbol	Length L (mm)	Width a (mm)	Catalogue number	Quantity in box (pcs. / m.)	Weight (1m) (kg)	Effective section
200 mm 22600 mm
	KSC200H120/3	3 000 mm	200	240120	2 / 6 pcs. / m.	8.46 kg	22,600	Add
	KSC200H120/6	6 000 mm	200	240121	2 / 12 pcs. / m.	8.46 kg	22,600	Add
300 mm 34600 mm
	KSC300H120/3	3 000 mm	300	240130	2 / 6 pcs. / m.	9.36 kg	34,600	Add
	KSC300H120/6	6 000 mm	300	240131	2 / 12 pcs. / m.	9.36 kg	34,600	Add
400 mm 46600 mm
	KSC400H120/3	3 000 mm	400	240140	2 / 6 pcs. / m.	10.26 kg	46,600	Add
	KSC400H120/6	6 000 mm	400	240141	2 / 12 pcs. / m.	10.26 kg	46,600	Add
500 mm 58600 mm
	KSC500H120/3	3 000 mm	500	240150	2 / 6 pcs. / m.	11.16 kg	58,600	Add
	KSC500H120/6	6 000 mm	500	240151	2 / 12 pcs. / m.	11.16 kg	58,600	Add
600 mm 70600 mm
	KSC600H120/3	3 000 mm	600	240160	2 / 6 pcs. / m.	12.06 kg	70,600	Add
	KSC600H120/6	6 000 mm	600	240161	2 / 12 pcs. / m.	12.06 kg	70,600	Add
