KZCH50 Cable Tray

1.5 2.0
2.0 Cable Management Solutions – BAKS
Information

Routing a cable route.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– for stable connection of 2 trays it is necessary to use 2 LZCH50 connectors or 1 LCC...H50 connector and

16 SGKFM6x12 or SGFM6x12 bolts

– drainage and cable fixing holes every 500 mm

Note
Connecting of trays with the use of couplers only.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

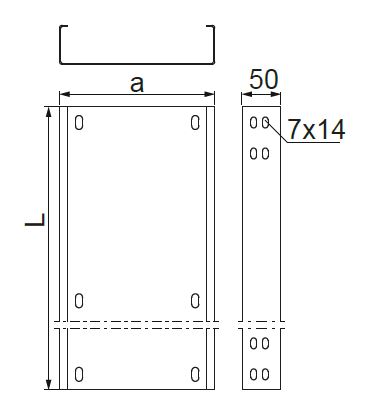

Symbol Width a (mm) Length L (mm) Weight (1m) (kg) Catalogue number Quantity in box (pcs. / m.) Effective section 3D file
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
2300 mm
KZC50H50/3
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
2.80 kg
Cable Management Solutions – BAKS
350405
Cable Management Solutions – BAKS
8 / 24 pcs. / m.
Cable Management Solutions – BAKS
2,300 		Plik *.std Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
4800 mm
KZC100H50/3
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
3.62 kg
Cable Management Solutions – BAKS
350410
Cable Management Solutions – BAKS
6 / 18 pcs. / m.
Cable Management Solutions – BAKS
4,800 		Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
9800 mm
KZC200H50/3
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
5.27 kg
Cable Management Solutions – BAKS
350420
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
9,800 		Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
14800 mm
KZC300H50/3
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.92 kg
Cable Management Solutions – BAKS
350430
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
14,800 		Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
19800 mm
KZC400H50/3
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.56 kg
Cable Management Solutions – BAKS
350440
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
19,800 		Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
24800 mm
KZC500H50/3
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
10.21 kg
Cable Management Solutions – BAKS
350450
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
24,800 		Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
29800 mm
KZC600H50/3
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
11.86 kg
Cable Management Solutions – BAKS
350460
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
29,800 		Plik *.std Add
Load
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

Qdop. (kN/m)
0.0
L (m)
0.0
Filling value
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 1
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 2
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 3
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 4
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS


Filling reserve (%)
Cable Management Solutions – BAKS
Filling correction (%)
Cable Management Solutions – BAKS
