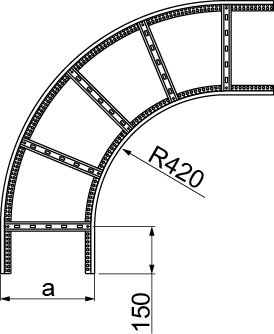

LDC...H45N 90° Horizontal Bend

2.0
Information

Diversion in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use 4 Straight Connector LDCH45N
and 16 sets of Screw SGKM8x14 or SGM8x14

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LDC100H45N
Cable Management Solutions – BAKS
446910
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.39
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDC200H45N
Cable Management Solutions – BAKS
446920
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
4.11
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDC300H45N
Cable Management Solutions – BAKS
446930
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4.83
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDC400H45N
Cable Management Solutions – BAKS
446940
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
5.55
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDC500H45N
Cable Management Solutions – BAKS
446950
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
6.27
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDC600H45N
Cable Management Solutions – BAKS
446960
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
7
Cable Management Solutions – BAKS
2
Plik *.std Add
Examples
