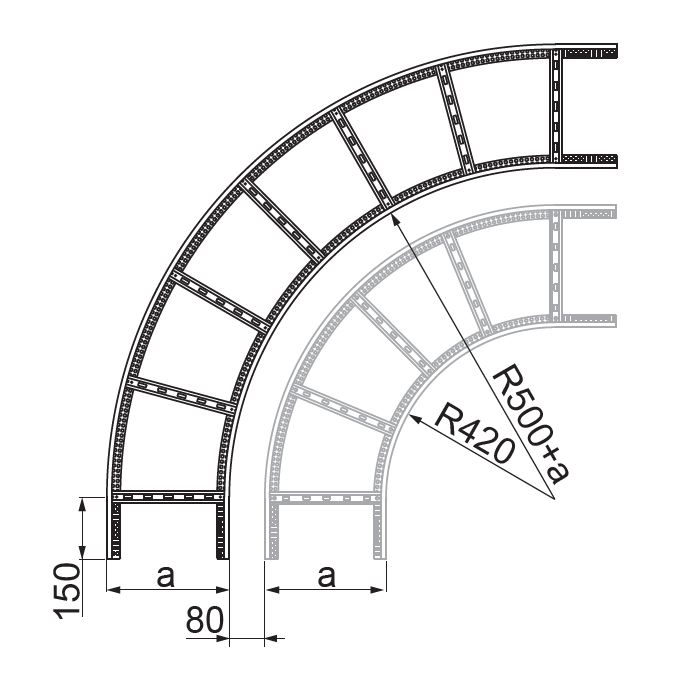

LDZP...H45N 90° Horizontal Bend - External

1.5
Information

Diversion in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use 4 Straight Connector LDCH45N
and 16 sets of Screw SGKM8x14 or SGM8x14

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LDZP100H45N
Cable Management Solutions – BAKS
447010
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
2.92
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDZP200H45N
Cable Management Solutions – BAKS
447020
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.92
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDZP300H45N
Cable Management Solutions – BAKS
447030
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4.95
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDZP400H45N
Cable Management Solutions – BAKS
447040
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
5.96
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDZP500H45N
Cable Management Solutions – BAKS
447050
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
6.91
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDZP600H45N
Cable Management Solutions – BAKS
447060
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
8.06
Cable Management Solutions – BAKS
2 		Add
