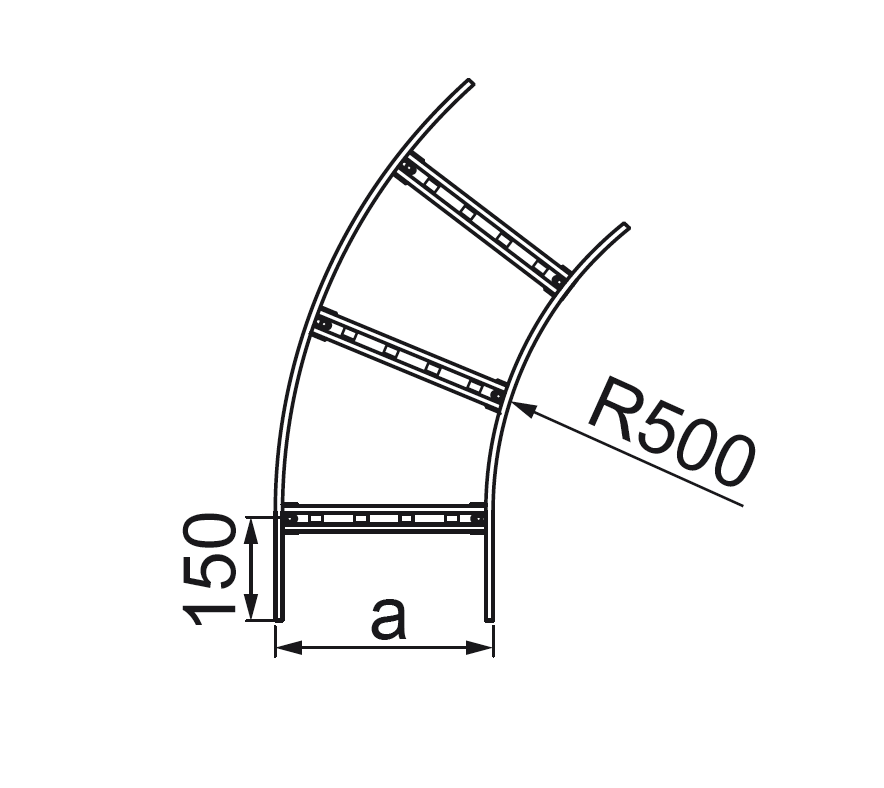

LDSMP...H120 45° Horizontal Bend

1.5
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDSMP200H120
Cable Management Solutions – BAKS
422121
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.83
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDSMP300H120
Cable Management Solutions – BAKS
422131
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4.06
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDSMP400H120
Cable Management Solutions – BAKS
422141
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
4.47
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDSMP500H120
Cable Management Solutions – BAKS
422151
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
5.05
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDSMP600H120
Cable Management Solutions – BAKS
422161
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
5.87
Cable Management Solutions – BAKS
2 		Add
