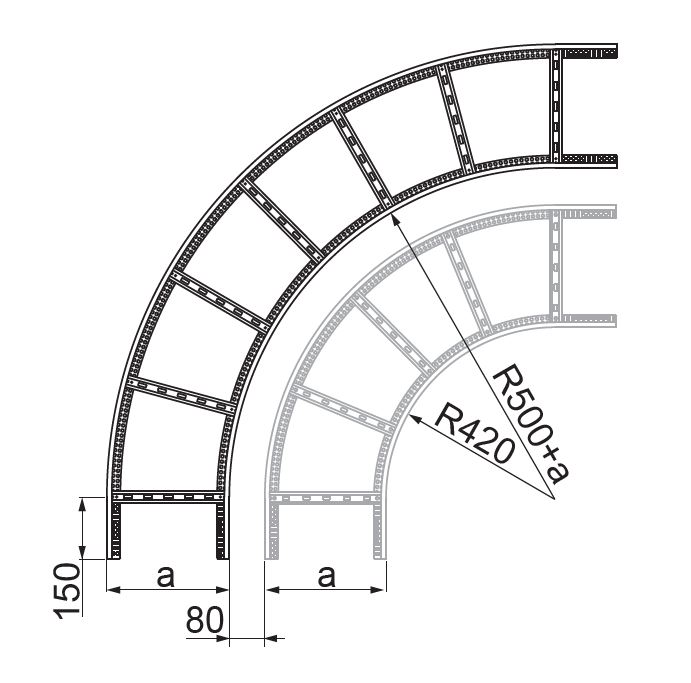

LDZC...H45N 90° Horizontal Bend - External

2.0
Information

Diversion in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use 4 Straight Connector LDCH45N
and 16 sets of Screw SGKM8x14 or SGM8x14

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LDZC100H45N
Cable Management Solutions – BAKS
447110
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.89
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDZC200H45N
Cable Management Solutions – BAKS
447120
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
5.22
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDZC300H45N
Cable Management Solutions – BAKS
447130
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6.60
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDZC400H45N
Cable Management Solutions – BAKS
447140
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
7.94
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDZC500H45N
Cable Management Solutions – BAKS
447150
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
9.21
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDZC600H45N
Cable Management Solutions – BAKS
447160
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
10.74
Cable Management Solutions – BAKS
2
Plik *.std Add
