Connecting cable ladders routed at different angles
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
– use 4 sets of SGKM8x14 or SGM8x14 bolts for mounting

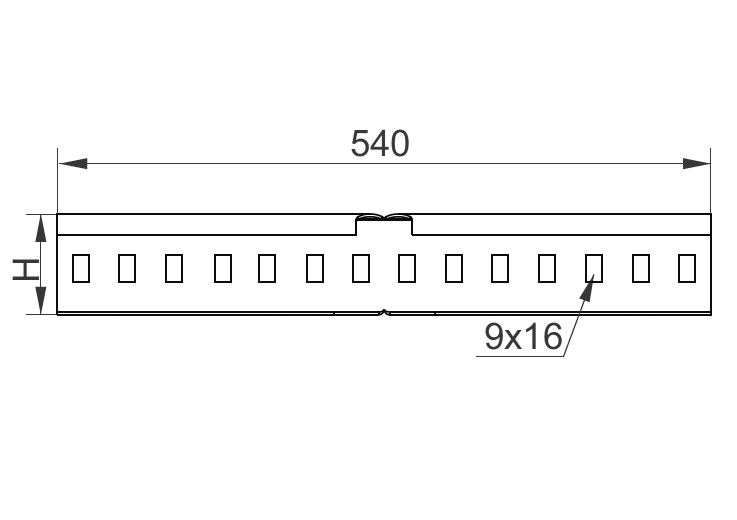

– the new dense perforation used in the connector guarantees the bolt connection of two ladders cut at any
point both at an angle and straight without additional drilling
– option E90 for a sheet thickness of 2 mm
