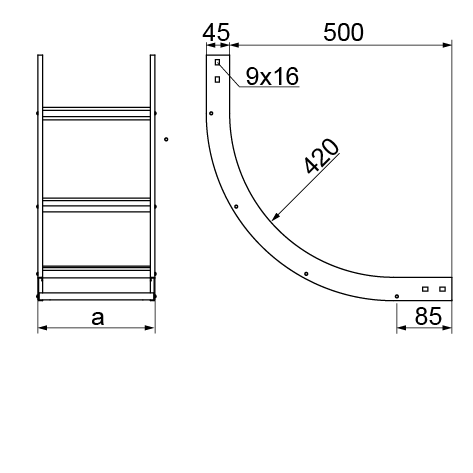

LPDWC...H45N 90° Vertical Bend - Internal

2.0
Information

Diversion in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use 4 Straight Connector LDCH
and 16 sets of Screw SGKM8x14 or SGM8x14

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LPDWC100H45N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
1.94
Cable Management Solutions – BAKS
449310
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LPDWC200H45N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
2.30
Cable Management Solutions – BAKS
449320
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LPDWC300H45N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
2.70
Cable Management Solutions – BAKS
449330
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LPDWC400H45N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3.06
Cable Management Solutions – BAKS
449340
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LPDWC500H45N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3.46
Cable Management Solutions – BAKS
449350
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LPDWC600H45N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3.86
Cable Management Solutions – BAKS
449360
Cable Management Solutions – BAKS
1 		Add
Examples
