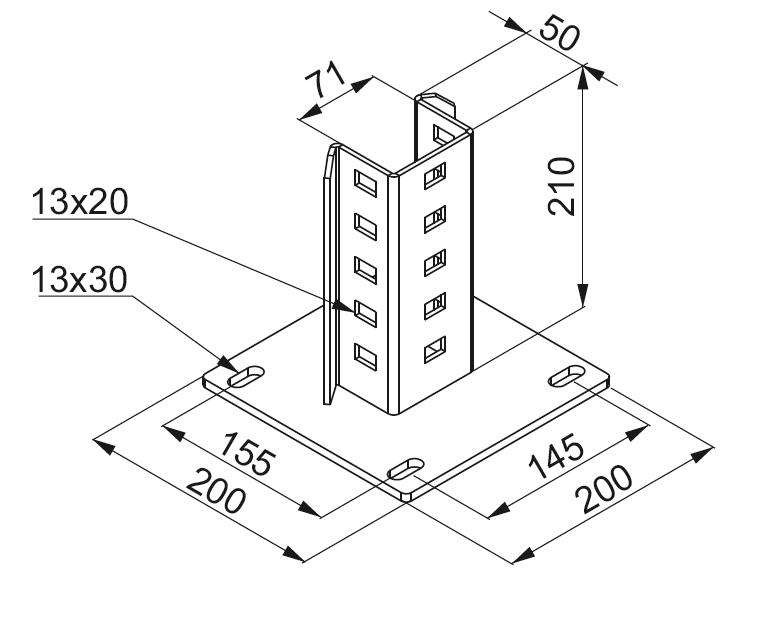

Assembly of vertical profile CT70H50... and
CWT70H50... as a support post of the system
to concrete foundation
Material
S235 steel, hot-dip galvanized acc. to
PN-EN ISO 1461:2011
Additional information
- increased strength due to specially shaped reinforcing folds
- holes in the base plate allowing adjustment of the position
during assembly
- dense perforation in the vertical part allows mounting height
adjustment of the support post
- high mounting stability due to the enlarged base plane
For assembly to:
- concrete foundation use 4 x PSRM10x90F Anchor Bolts
