1.0

Information

Protection of cables from mechanical damage. Improving the visual aspect of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for additional protection against falling of the cover, it is recommended to use ZPNH80 clips

Product versions

Add

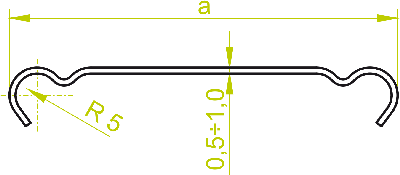

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
60 mm mm
	PKJS60/3	900406	60	3 000 mm	0.64 kg	20 / 60 pcs. / m.	Add
100 mm mm
	PKJS100/3	900410	100	3 000 mm	1.04 kg	10 / 30 pcs. / m.	Add
150 mm mm
	PKJS150/3	900415	150	3 000 mm	1.44 kg	10 / 30 pcs. / m.	Add
200 mm mm
	PKJS200/3	900420	200	3 000 mm	1.84 kg	10 / 30 pcs. / m.	Add
300 mm mm
	PKJS300/3	900430	300	3 000 mm	2.64 kg	6 / 18 pcs. / m.	Add
400 mm mm
	PKJS400/3	900440	400	3 000 mm	3.44 kg	6 / 18 pcs. / m.	Add
500 mm mm
	PKJS500/3	900450	500	3 000 mm	4.24 kg	4 / 12 pcs. / m.	Add
600 mm mm
	PKJS600/3	900460	600	3 000 mm	5.04 kg	4 / 12 pcs. / m.	Add
