PKRS... Cover

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

0.5

Information

Eliminating the risk of mechanical damage
to cables. Improving overall aesthetic
appearance of cable runs

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– for additional protection against falling of the cover, it is recommended to use ZPNH80 clips

Product versions

Add

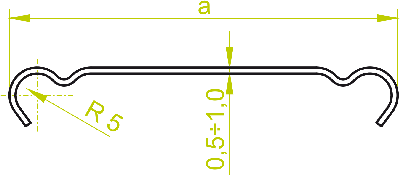

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
50 mm mm
	PKRS50/3	900105	50	3 000 mm	0.22 kg	20 / 60 pcs. / m.	Add
60 mm mm
	PKRS60/3	900106	60	3 000 mm	0.28 kg	20 / 60 pcs. / m.	Add
100 mm mm
	PKRS100/3	900110	100	3 000 mm	0.45 kg	20 / 60 pcs. / m.	Add
150 mm mm
	PKRS150/3	900115	150	3 000 mm	0.67 kg	10 / 30 pcs. / m.	Add
200 mm mm
	PKRS200/3	900120	200	3 000 mm	0.86 kg	10 / 30 pcs. / m.	Add
300 mm mm
	PKRS300/3	900130	300	3 000 mm	1.25 kg	10 / 30 pcs. / m.	Add
