PLZZCH100 Cover For 90° Vertical Bend - External H100

2.0
Information

Protects cables from damage, UV rays and weather conditions. Airtight protection against the accumulation of dust and dirt.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– in each cover there are process holes necessary for the hot-dip galvanising process.

– when ordering the cover itself, please specify the designation or part number of the fitting to which it is to fit

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

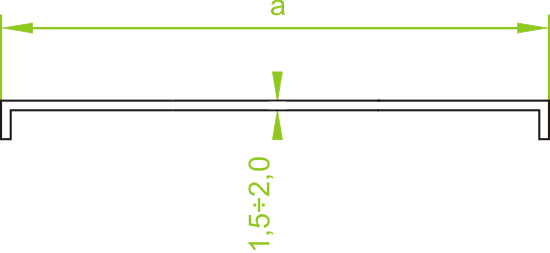

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
PLZZC100H100
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
1.03
Cable Management Solutions – BAKS
331810
Cable Management Solutions – BAKS
20
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
PLZZC200H100
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
1.93
Cable Management Solutions – BAKS
331820
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
PLZZC300H100
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
2.84
Cable Management Solutions – BAKS
331830
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
PLZZC400H100
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3.74
Cable Management Solutions – BAKS
331840
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
PLZZC500H100
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
4.64
Cable Management Solutions – BAKS
331850
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
PLZZC600H100
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
5.55
Cable Management Solutions – BAKS
331860
Cable Management Solutions – BAKS
4
Add
