PZLZZPH100 Cover For 90° Vertical Bend - External H100 with Lock

1.5
Information

Protects cables from damage, UV rays and weather conditions. Airtight protection against the accumulation of dust and dirt.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– in each cover there are process holes necessary for the hot-dip galvanising process.

– when ordering the cover itself, please specify the designation or part number of the fitting to which it is to fit

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

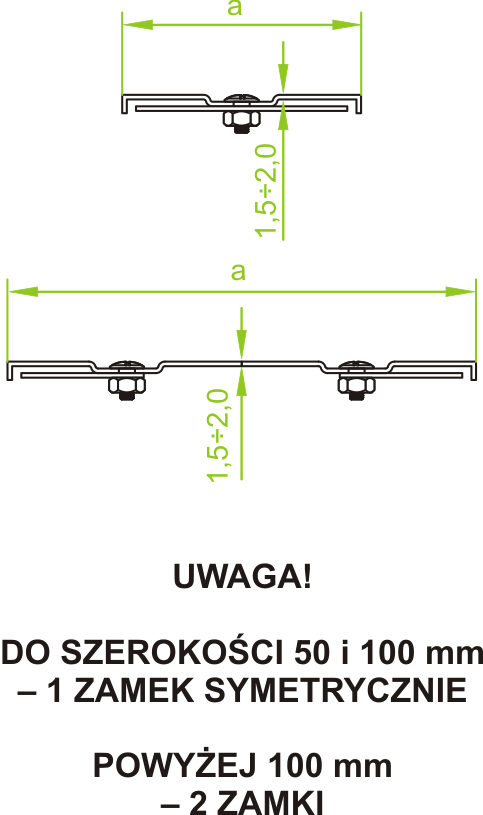

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
PZLZZP100H100
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.87
Cable Management Solutions – BAKS
331910
Cable Management Solutions – BAKS
20
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
PZLZZP200H100
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
1.65
Cable Management Solutions – BAKS
331920
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
PZLZZP300H100
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
2.65
Cable Management Solutions – BAKS
331930
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
PZLZZP400H100
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3
Cable Management Solutions – BAKS
331940
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
PZLZZP500H100
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3.68
Cable Management Solutions – BAKS
331950
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
PZLZZP600H100
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
4.36
Cable Management Solutions – BAKS
331960
Cable Management Solutions – BAKS
4
Add
