RKSBP...H100 Straight Reducer

1.5
Information

Reducing/extending Width of cable runs.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

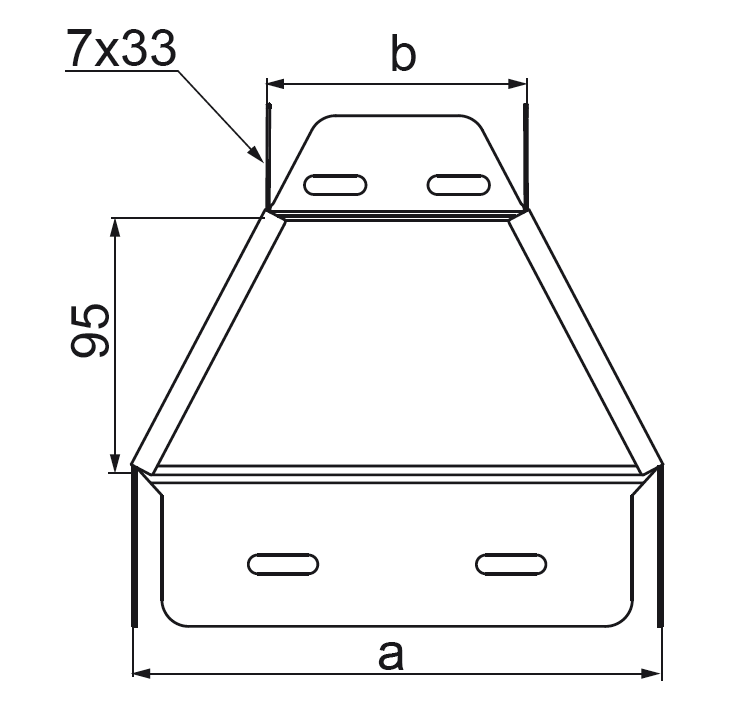

In case of special orders please specify dimensions a and b.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
No product version selected
Add
Symbol Catalogue number Weight 1 pc. (kg) Size b (mm) Quantity (pcs.) Size a (mm)
RKSBP400/300H100
Cable Management Solutions – BAKS
119440
Cable Management Solutions – BAKS
0.74
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
400 		Add
RKSBP500/400H100
Cable Management Solutions – BAKS
119450
Cable Management Solutions – BAKS
0.86
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
500 		Add
RKSBP600/500H100
Cable Management Solutions – BAKS
119460
Cable Management Solutions – BAKS
0.98
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
600 		Add
