1.5

Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request

Joining cable tray sections together only through the use of connectors
(lack of cut in the flange at the end of side profile). For the assembly
use Screw Sets SGKM6x12 or SGM6x12.
NOTE!
The 1.5 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed

Product versions

Add

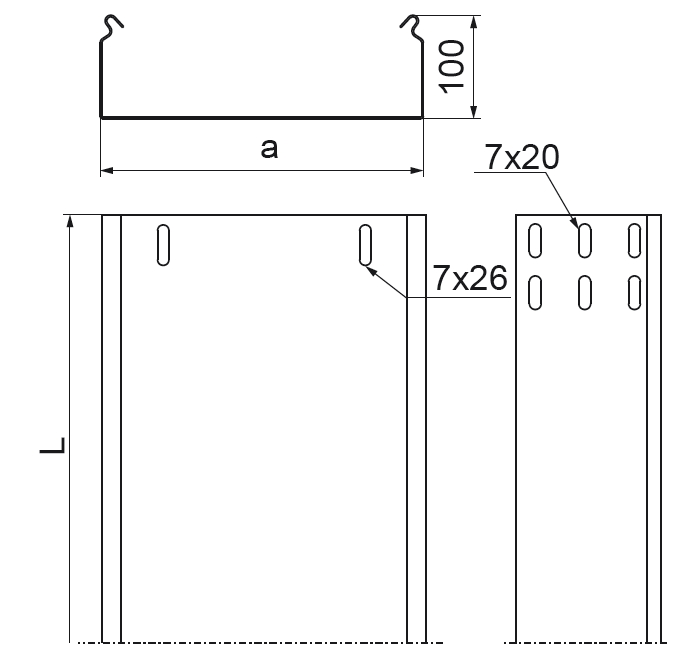

	Symbol	Width a (mm)	Length L (mm)	Effective section	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
100 mm 9800 mm
	KBP100H100/3	100	3 000 mm	9,800	3.82 kg	112010	4 / 12 pcs. / m.	Add
150 mm 14800 mm
	KBP150H100/3	150	3 000 mm	14,800	4.38 kg	112015	4 / 12 pcs. / m.	Add
200 mm 19800 mm
	KBP200H100/3	200	3 000 mm	19,800	4.96 kg	112020	4 / 12 pcs. / m.	Add
300 mm 29800 mm
	KBP300H100/3	300	3 000 mm	29,800	6.11 kg	112030	4 / 12 pcs. / m.	Add
400 mm 39800 mm
	KBP400H100/3	400	3 000 mm	39,800	7.26 kg	112040	2 / 6 pcs. / m.	Add
500 mm 49800 mm
	KBP500H100/3	500	3 000 mm	49,800	8.41 kg	112050	2 / 6 pcs. / m.	Add
600 mm 59800 mm
	KBP600H100/3	600	3 000 mm	59,800	9.57 kg	112060	2 / 6 pcs. / m.	Add
