TDP/TDOP...H60 Horizontal Tee

1.5 Cable Management Solutions – BAKS
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 6 LDPH60 or LDC/LDOCH60 and 24 sets of SGKM8x14 or SGM8x14 bolts for mounting

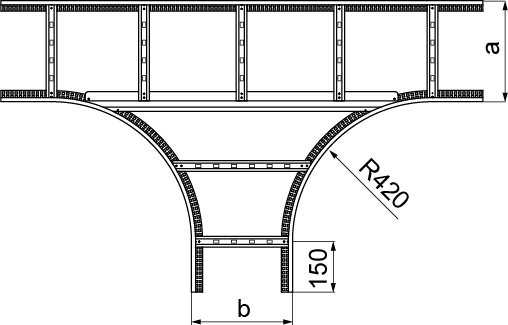

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the designation TD...400/600/400H...)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
TDP/TDOP100H60
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
4.56
Cable Management Solutions – BAKS
467210
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
TDP/TDOP200H60
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
5.29
Cable Management Solutions – BAKS
467220
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
TDP/TDOP300H60
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6.02
Cable Management Solutions – BAKS
467230
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
TDP/TDOP400H60
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
6.75
Cable Management Solutions – BAKS
467240
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
TDP/TDOP500H60
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
7.48
Cable Management Solutions – BAKS
467250
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
TDP/TDOP600H60
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
8.22
Cable Management Solutions – BAKS
467260
Cable Management Solutions – BAKS
2
Add
