TDSUP...H150 Add-on Tee

1.5 Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– to connect the fitting to the cable ladder, use 16 sets of SGKM8x16 or SGNM8x16 bolts

– quick and stable mounting

– mounting at any point on an existing cable route

– possibility to screw the rungs from the cable ladder to the lower part of the extension tee

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

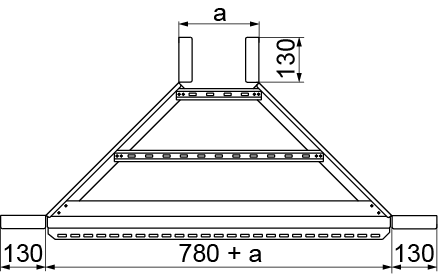

Symbol Catalogue number Size a=b (mm) Weight 1 pc. (kg) Quantity (pcs.)
TDSUP200H150
Cable Management Solutions – BAKS
423122
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6.56
Cable Management Solutions – BAKS
1
Add
TDSUP300H150
Cable Management Solutions – BAKS
423132
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6.88
Cable Management Solutions – BAKS
1
Add
TDSUP400H150
Cable Management Solutions – BAKS
423142
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
7.21
Cable Management Solutions – BAKS
1
Add
TDSUP500H150
Cable Management Solutions – BAKS
423152
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
7.53
Cable Management Solutions – BAKS
1
Add
TDSUP600H150
Cable Management Solutions – BAKS
423162
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
7.85
Cable Management Solutions – BAKS
1
Add
