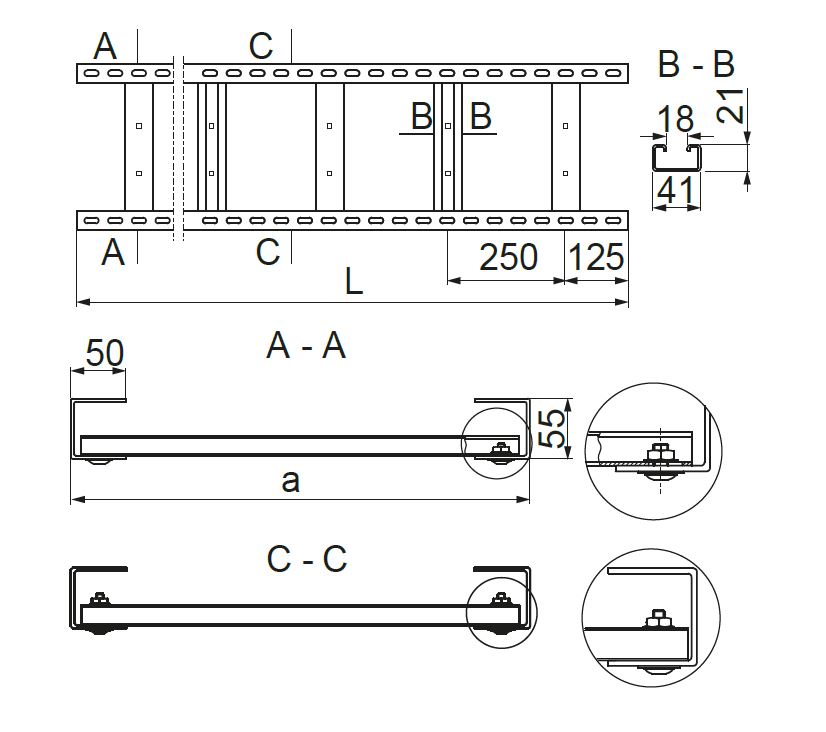

DDM...H55 Vertical Cable Ladder

2.0 3.0 5.0
3.0 Cable Management Solutions – BAKS
Information

Routing vertical cable routes of various types.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– the use of a new rung with increased strength parameters stiffens the ladder

– ladders with rungs mounted on both sides.

– the possibility of mounting cables in UKZ/UKZO... and UK/UKO... and UKZP... and UKP... clamps on both

sides of the ladder

– option E – only for sections up to 3 m

– the use of a new rung with increased strength parameters stiffens the ladder
– ladders with rungs mounted on both sides.
– the possibility of mounting cables in UKZ/UKZO... and UK/UKO... and UKZP... and UKP... clamps on both
sides of the ladder
– option E – only for sections up to 3 m
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Width a (mm) Length L (mm) Weight (1m) (kg) Quantity in box (pcs. / m.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
DDM200H55/3
Cable Management Solutions – BAKS
403520
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.62 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM200H55/6
Cable Management Solutions – BAKS
403620
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
6.62 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
DDM300H55/3
Cable Management Solutions – BAKS
403530
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
7.14 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM300H55/6
Cable Management Solutions – BAKS
403630
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
7.14 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
DDM400H55/3
Cable Management Solutions – BAKS
403540
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
7.66 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM400H55/6
Cable Management Solutions – BAKS
403640
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
7.66 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
DDM500H55/3
Cable Management Solutions – BAKS
403550
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.18 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM500H55/6
Cable Management Solutions – BAKS
403650
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
8.18 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
DDM600H55/3
Cable Management Solutions – BAKS
403560
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.70 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM600H55/6
Cable Management Solutions – BAKS
403660
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
8.70 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
700 mm
Cable Management Solutions – BAKS
mm
DDM700H55/3
Cable Management Solutions – BAKS
403570
Cable Management Solutions – BAKS
700
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
9.30 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM700H55/6
Cable Management Solutions – BAKS
403670
Cable Management Solutions – BAKS
700
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
9.30 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
800 mm
Cable Management Solutions – BAKS
mm
DDM800H55/3
Cable Management Solutions – BAKS
403580
Cable Management Solutions – BAKS
800
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
9.86 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM800H55/6
Cable Management Solutions – BAKS
403680
Cable Management Solutions – BAKS
800
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
9.86 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
900 mm
Cable Management Solutions – BAKS
mm
DDM900H55/3
Cable Management Solutions – BAKS
403590
Cable Management Solutions – BAKS
900
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
10.38 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM900H55/6
Cable Management Solutions – BAKS
403690
Cable Management Solutions – BAKS
900
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
10.38 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
Cable Management Solutions – BAKS
1000 mm
Cable Management Solutions – BAKS
mm
DDM1000H55/3
Cable Management Solutions – BAKS
403591
Cable Management Solutions – BAKS
1,000
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
10.94 kg
Cable Management Solutions – BAKS
1 / 3 pcs. / m. 		Add
DDM1000H55/6
Cable Management Solutions – BAKS
403691
Cable Management Solutions – BAKS
1,000
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
10.94 kg
Cable Management Solutions – BAKS
1 / 6 pcs. / m. 		Add
