1.2

Information

Routing vertical cable routes of various types.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– the use of a new rung with increased strength parameters stiffens the ladder

– the possibility of mounting cables in UKZ/UKZO... and UK/UKO... and UKZP... and UKP... clamps

– option E – only for sections up to 3 m – design with less dense perforation in the bottom of the board

Product versions

Add

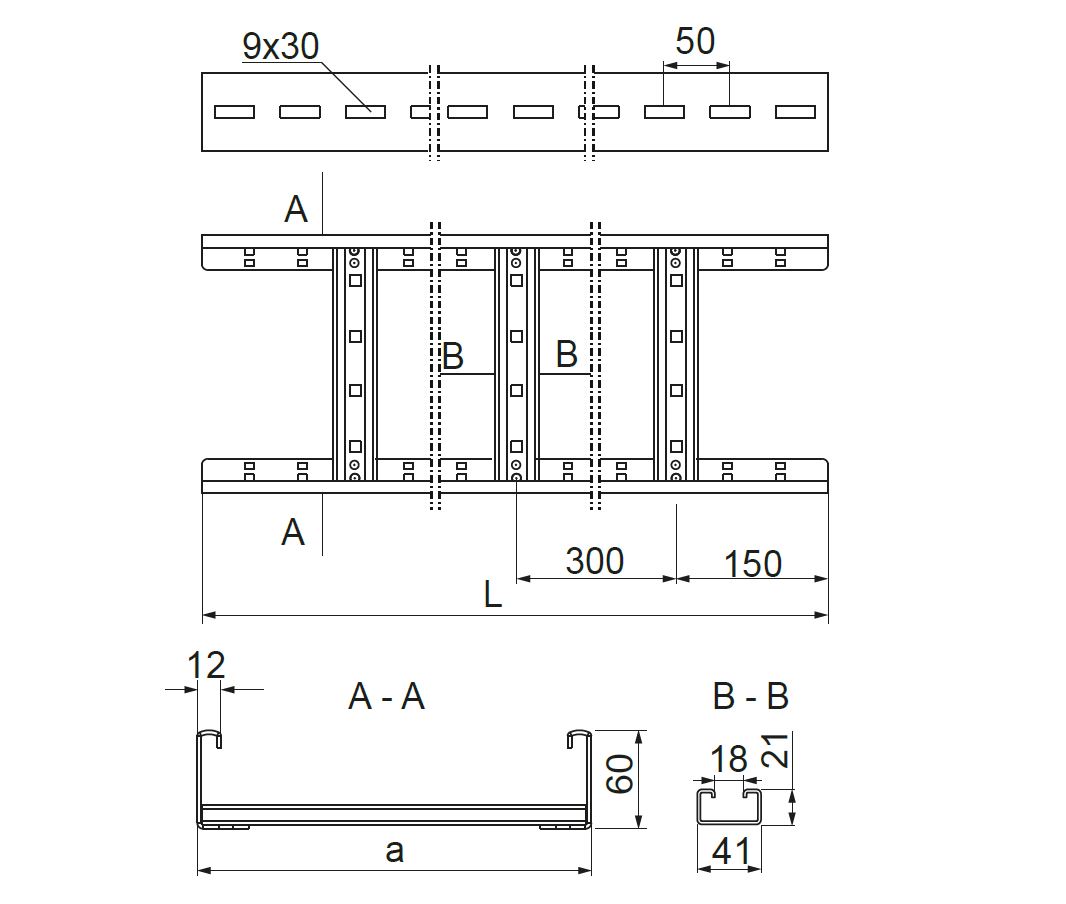

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
100 mm mm
	DUVD100H60/3	466013	100	3 000 mm	2.01 kg	4 / 12 pcs. / m.	Add
	DUVD100H60/6	466016	100	6 000 mm	2.01 kg	2 / 12 pcs. / m.	Add
200 mm mm
	DUVD200H60/3	466023	200	3 000 mm	2.24 kg	4 / 12 pcs. / m.	Add
	DUVD200H60/6	466026	200	6 000 mm	2.24 kg	2 / 12 pcs. / m.	Add
300 mm mm
	DUVD300H60/3	466033	300	3 000 mm	2.47 kg	2 / 6 pcs. / m.	Add
	DUVD300H60/6	466036	300	6 000 mm	2.47 kg	2 / 12 pcs. / m.	Add
400 mm mm
	DUVD400H60/3	466043	400	3 000 mm	2.81 kg	2 / 6 pcs. / m.	Add
	DUVD400H60/6	466046	400	6 000 mm	2.81 kg	2 / 12 pcs. / m.	Add
500 mm mm
	DUVD500H60/3	466053	500	3 000 mm	2.92 kg	2 / 6 pcs. / m.	Add
	DUVD500H60/6	466056	500	6 000 mm	2.92 kg	2 / 12 pcs. / m.	Add
600 mm mm
	DUVD600H60/3	466063	600	3 000 mm	3.15 kg	2 / 6 pcs. / m.	Add
	DUVD600H60/6	466066	600	6 000 mm	3.15 kg	2 / 12 pcs. / m.	Add
