1.5

Information

Routing a cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

NOTE
Cable ladder with rungs adapted to fixing Cable Clamps UK/UKO available upon special order:
- cable ladders 2m long
- cable ladders 150, 250mm wide
- production capability of perforated rungs

NOTE
For horizontal assembly of ladders with rungs directly to the wall we recommend using ladders with double riveting of rungs to the side. Installation of the ladder additionally strengthened with flat bars

Product versions

Add

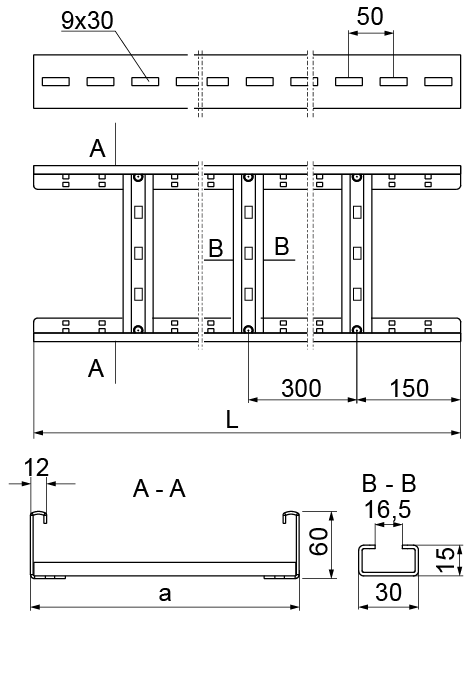

	Symbol	Width a (mm)	Length L (mm)	Effective section	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
100 mm 4200 mm
	DUP/DUOP100H60/3	100	3 000 mm	4,200	2.42 kg	466310	4 / 12 pcs. / m.	Add
	DUP/DUOP100H60/6	100	6 000 mm	4,200	2.42 kg	466410	2 / 12 pcs. / m.	Add
200 mm 8400 mm
	DUP/DUOP200H60/3	200	3 000 mm	8,400	2.69 kg	466320	4 / 12 pcs. / m.	Add
	DUP/DUOP200H60/6	200	6 000 mm	8,400	2.69 kg	466420	2 / 12 pcs. / m.	Add
300 mm 12600 mm
	DUP/DUOP300H60/3	300	3 000 mm	12,600	2.97 kg	466330	2 / 6 pcs. / m.	Add
	DUP/DUOP300H60/6	300	6 000 mm	12,600	2.97 kg	466430	2 / 12 pcs. / m.	Add
400 mm 16800 mm
	DUP/DUOP400H60/3	400	3 000 mm	16,800	3.38 kg	466340	2 / 6 pcs. / m.	Add
	DUP/DUOP400H60/6	400	6 000 mm	16,800	3.38 kg	466440	2 / 12 pcs. / m.	Add
500 mm 21000 mm
	DUP500H60/3	500	3 000 mm	21,000	3.51 kg	466350	2 / 6 pcs. / m.	Add
	DUP500H60/6	500	6 000 mm	21,000	3.51 kg	466450	2 / 12 pcs. / m.	Add
600 mm 25200 mm
	DUP600H60/3	600	3 000 mm	25,200	3.79 kg	466360	2 / 6 pcs. / m.	Add
	DUP600H60/6	600	6 000 mm	25,200	3.79 kg	466460	2 / 12 pcs. / m.	Add
