Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x10 or SGM6x10.

Product versions

Add

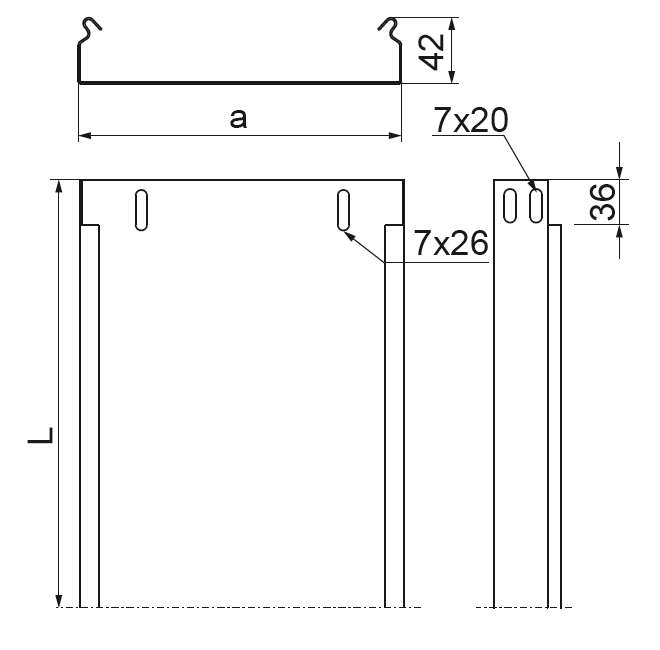

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 1900 mm
	KBJ50H42/3	142005	50	3 000 mm	1.03 kg	8 / 24 pcs. / m.	1,900	Add
100 mm 4000 mm
	KBJ100H42/3	142010	100	3 000 mm	1.37 kg	4 / 12 pcs. / m.	4,000	Add
200 mm 8200 mm
	KBJ200H42/3	142020	200	3 000 mm	2.25 kg	4 / 12 pcs. / m.	8,200	Add
300 mm 12400 mm
	KBJ300H42/3	142030	300	3 000 mm	2.97 kg	4 / 12 pcs. / m.	12,400	Add
